10-216-2-01

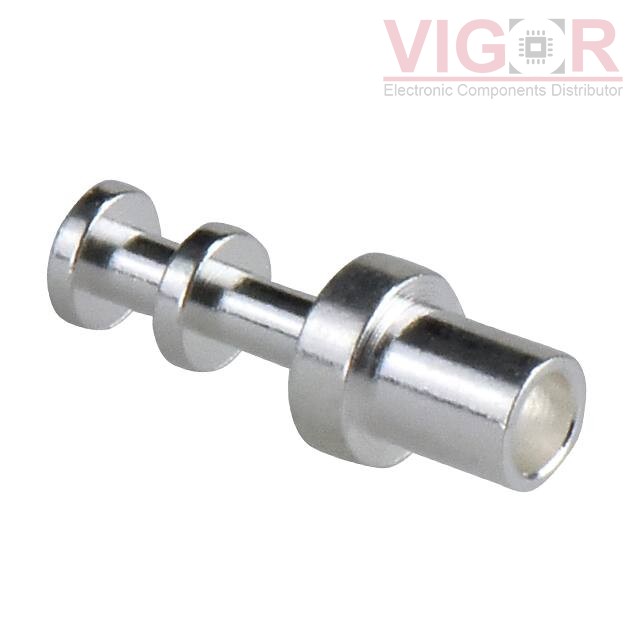

Image is for reference,
please contact us to get the real picture

Part No :: 10-216-2-01

Manufacturer: Concord Electronics

Description: NON-INSULATED DOUBLE TURRET TERM

Catalog: Terminals - Turret Connectors

DataSheet: 10-216-2-01 PDF

Availability: 10000 pieces

Unit Price: ~~$0.47600~~

Current price of 10-216-2-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

10-216-2-01 Specifications

Type	Description
Series:	10-216
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End
Number of Turrets:	Double
Length - Above Board:	0.237" (6.02mm)
Length - Below Flange:	0.105" (2.67mm)
Length - Overall:	0.342" (8.69mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.125" (3.18mm)
Diameter - Turret Head:	0.047" (1.19mm)
Staking Side OD:	0.090" (2.29mm)
Staking Side ID:	0.064" (1.63mm)
Mounting Hole Diameter:	0.094" (2.39mm)
Board Thickness:	0.063" (1.60mm)
Contact Material:	Brass
Contact Finish:	Silver
Contact Finish Thickness:	300.0µin (7.62µm)
Insulation:	Non-Insulated

Please confirm the specifications of the products when ordering.
