23003536-01

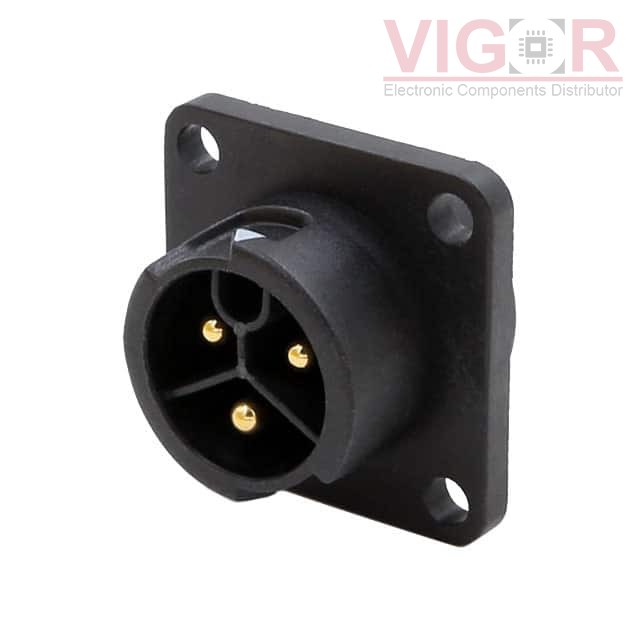

Image is for reference,
please contact us to get the real picture

Part No :: 23003536-01

Manufacturer: Chogori Technologies

Description: CONN RCPT MALE 3POS SOLDER CUP

Catalog: Circular Connectors

DataSheet: 23003536-01 PDF

Availability: 60 pieces

Unit Price: ~~$6.79000~~

Current price of 23003536-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

23003536-01 Specifications

Type	Description
Series:	Middle
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle, Male Pins
Number of Positions:	3
Shell Size - Insert:	-
Shell Size, MIL:	-
Mounting Type:	Panel Mount
Mounting Feature:	Flange
Termination:	Solder Cup
Fastening Type:	Push-Twist
Orientation:	Keyed
Shell Material:	Polyamide (PA66), Nylon 6/6
Shell Finish:	-
Contact Finish - Mating:	Gold
Color:	Black
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	-
Features:	-
Shielding:	Unshielded
Current Rating (Amps):	20A
Voltage Rating:	250V
Cable Opening:	-
Operating Temperature:	-45°C ~ 105°C
