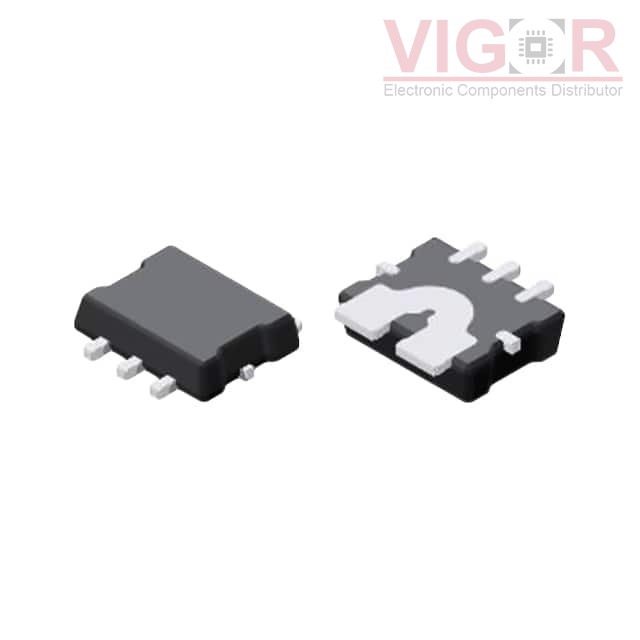

ACS72981LLRATR-100B5

Part No :: ACS72981LLRATR-100B5

Manufacturer: Allegro MicroSystems

VIGOR # :: 3520372

Description: HIGH PRECISION LINEAR HALL EFFEC

Catalog: Current Sensors

DataSheet: ACS72981LLRATR-100B5 PDF

Country of origin: -

Date code: -

ACS72981LLRATR-100B5 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
For Measuring:	AC/DC
Sensor Type:	Hall Effect, Differential
Current - Sensing:	100A
Number of Channels:	1
Output:	Ratiometric, Voltage
Sensitivity:	20mV/A
Frequency:	DC ~ 250kHz
Linearity:	±0.8%
Accuracy:	-
Voltage - Supply:	4.5V ~ 5.5V
Response Time:	1.8µs
Current - Supply (Max):	14mA (Typ)
Operating Temperature:	-40°C ~ 150°C (TA)
Polarization:	Bidirectional
Mounting Type:	Surface Mount
Package / Case:	7-PowerSMD Module
Supplier Device Package:	7-PSOF

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 7782

Shipped from

HK warehouse

Expected Shipping Date

Dec 28 - Jan 01 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$6.32~~	~~$6.32~~
9000	~~$2.47~~	~~$22 264.20~~

Current price of ACS72981LLRATR-100B5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
