ACS756SCB-100B-PFF-T

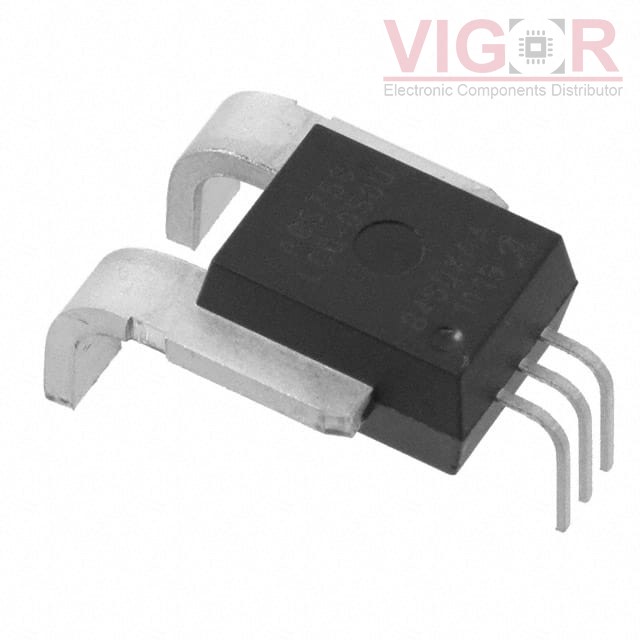

Product image
Product thumb
Part No :

ACS756SCB-100B-PFF-T

Manufacturer
Allegro MicroSystems
VIGOR # :

3520414

Description
SENSOR CURRENT HALL
Catalog
Current Sensors
DataSheet
ACS756SCB-100B-PFF-T PDF
Country of origin
-
Date code
-
ads
ACS756SCB-100B-PFF-T Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
For Measuring:AC/DC
Sensor Type:Hall Effect, Open Loop
Current - Sensing:100A
Number of Channels:1
Output:Ratiometric, Voltage
Sensitivity:20mV/A
Frequency:DC ~ 120kHz
Linearity:±1.75%
Accuracy:±7%
Voltage - Supply:3V ~ 5.5V
Response Time:3µs
Current - Supply (Max):14mA
Operating Temperature:-20°C ~ 85°C
Polarization:Bidirectional
Mounting Type:Through Hole
Package / Case:5-CB Formed Leads, PFF
Supplier Device Package:5-CB Module
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Feb 11 - Feb 15 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $3.34 $3.34
5 $2.94 $14.71
10 $2.60 $25.99
34 $2.11 $71.70
68 $1.86 $126.73
102 $1.81 $185.09
510 $1.52 $775.39
1020 $1.42 $1 450.73

Current price of ACS756SCB-100B-PFF-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
