CQ209B

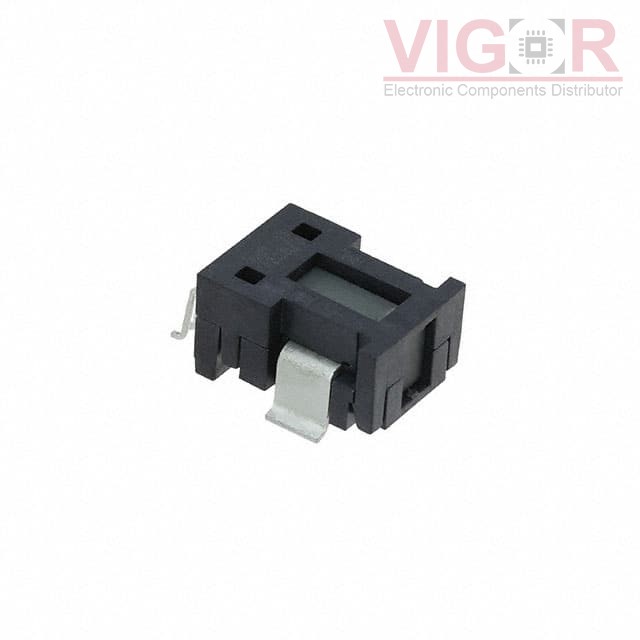

Image is for reference,
please contact us to get the real picture

Part No :: CQ209B

Manufacturer: Asahi Kasei Microdevices / AKM Semiconductor

Description: SENSOR CURRENT HALL 20A AC/DC

Catalog: Current Sensors

DataSheet: CQ209B PDF

Availability: 0 pieces

Unit Price: ~~$3.66850~~

Current price of CQ209B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CQ209B Specifications

Type	Description
Series:	CQ
Package:	Tray
Part Status:	Obsolete
For Measuring:	AC/DC
Sensor Type:	Hall Effect, Open Loop
Current - Sensing:	-
Number of Channels:	1
Output:	Ratiometric, Voltage
Sensitivity:	115mV/A
Frequency:	-
Linearity:	±1%
Accuracy:	±1%
Voltage - Supply:	4.5V ~ 5.5V
Response Time:	1µs
Current - Supply (Max):	9mA
Operating Temperature:	-40°C ~ 90°C
Polarization:	Unidirectional
Mounting Type:	Surface Mount
Package / Case:	Module
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
