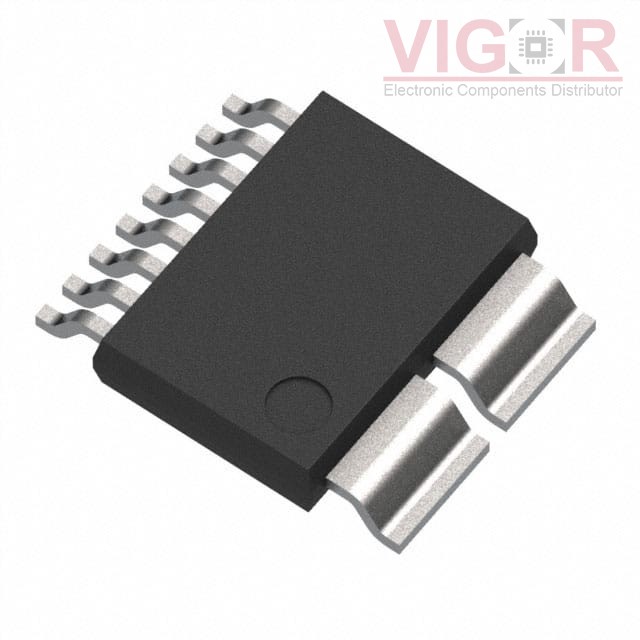

CZ3A06

Part No :: CZ3A06

Manufacturer: Asahi Kasei Microdevices / AKM Semiconductor

VIGOR # :: 3520894

Description: 3.3V OUTPUT ACCURATE CORELESS CU

Catalog: Current Sensors

DataSheet: CZ3A06 PDF

Country of origin: -

Date code: -

CZ3A06 Specifications

Type	Description
Series:	CZ
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
For Measuring:	AC/DC
Sensor Type:	Hall Effect, Open Loop
Current - Sensing:	103.3A
Number of Channels:	1
Output:	Voltage
Sensitivity:	15mV/A
Frequency:	-
Linearity:	±0.6%
Accuracy:	±2.1%
Voltage - Supply:	3V ~ 3.6V
Response Time:	1µs
Current - Supply (Max):	14mA (Typ)
Operating Temperature:	-40°C ~ 85°C (TA)
Polarization:	Unidirectional
Mounting Type:	Surface Mount
Package / Case:	16-PowerSOIC (0.303", 7.70mm Width), 10 Leads
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 714

Shipped from

HK warehouse

Expected Shipping Date

Jan 02 - Jan 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$9.83~~	~~$9.83~~

Current price of CZ3A06 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

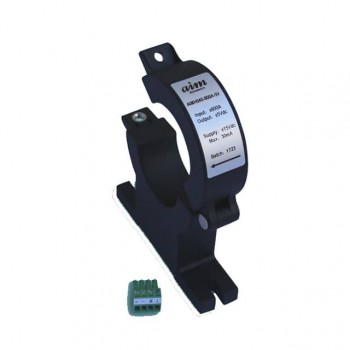

AIMH040-500A-5VT

CURRENT SENSOR 500A 5V UNIDI

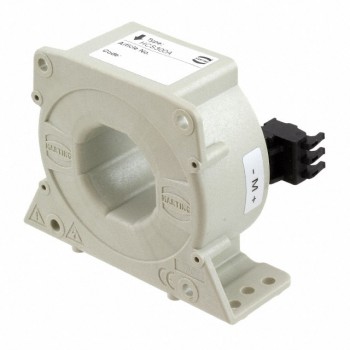

20310300101
