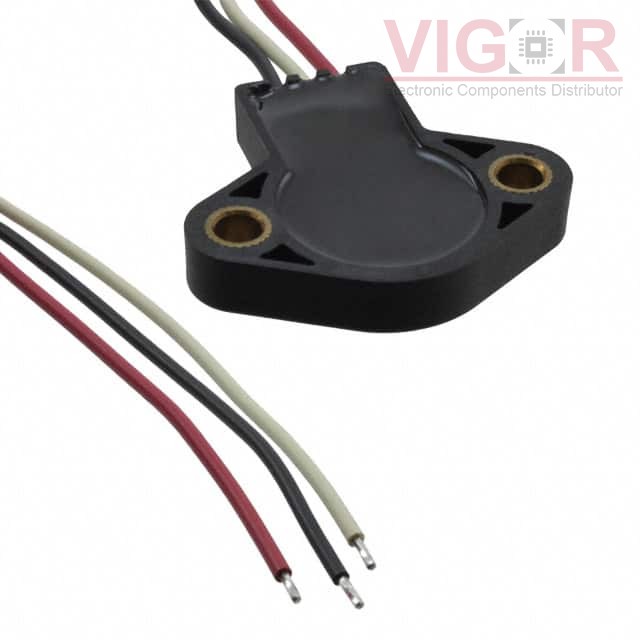

AN820032

Part No :: AN820032

Manufacturer: Waldom Electronics

Description: SENSOR ANGLE 360DEG WIRE LEADS

Catalog: Position Sensors - Angle, Linear Position Measuring

DataSheet: AN820032 PDF

Availability: 148 pieces

Unit Price: ~~$36.40000~~

Current price of AN820032 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AN820032 Specifications

Type	Description
Series:	AN8
Package:	Bulk
Part Status:	Obsolete
For Measuring:	Angle
Technology:	Hall Effect
Rotation Angle - Electrical, Mechanical:	0° ~ 360°, Continuous
Linear Range:	-
Output:	Analog Voltage
Output Signal:	Clockwise Increase
Actuator Type:	External Magnet, Not Included
Linearity:	±3.5%
Resistance:	-
Resistance Tolerance:	-
Voltage - Supply:	5V
Mounting Type:	Chassis Mount
Termination Style:	Wire Leads
Operating Temperature:	-40°C ~ 150°C
Package / Case:	Box with Wire Leads
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
