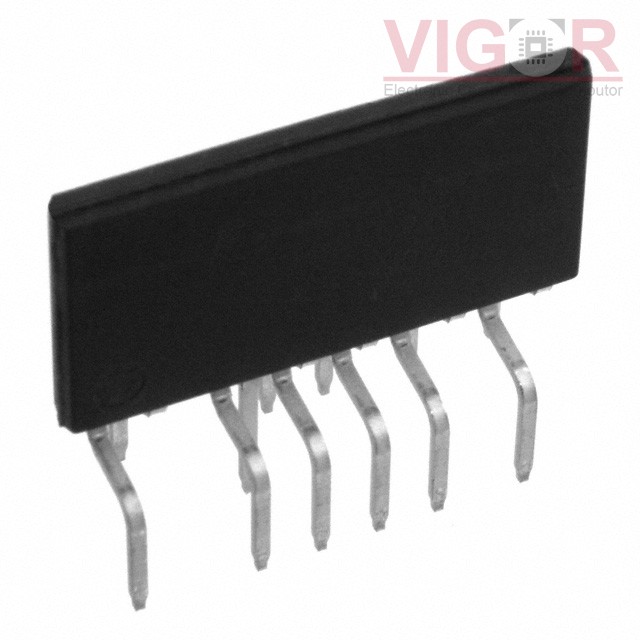

TFS7704H

Part No :: TFS7704H

Manufacturer: Power Integrations

VIGOR # :: 3857343

Description: IC REG CTRLR MULT TOPOLOGY 7ESIP

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: TFS7704H PDF

Country of origin: -

Date code: -

TFS7704H Specifications

Type	Description
Series:	HiperTFS™-2
Package:	Tube
Part Status:	Active
Output Type:	Transistor Driver
Function:	Step-Up, Step-Down
Output Configuration:	Positive, Isolation Capable
Topology:	Flyback, Forward Converter
Number of Outputs:	2
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	Up to 11.5V
Frequency - Switching:	66kHz, 132kHz
Duty Cycle (Max):	63%
Synchronous Rectifier:	No
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Enable, Reset
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	16-SSIP, 12 Leads, Exposed Pad, Formed Leads
Supplier Device Package:	eSIP-16F
