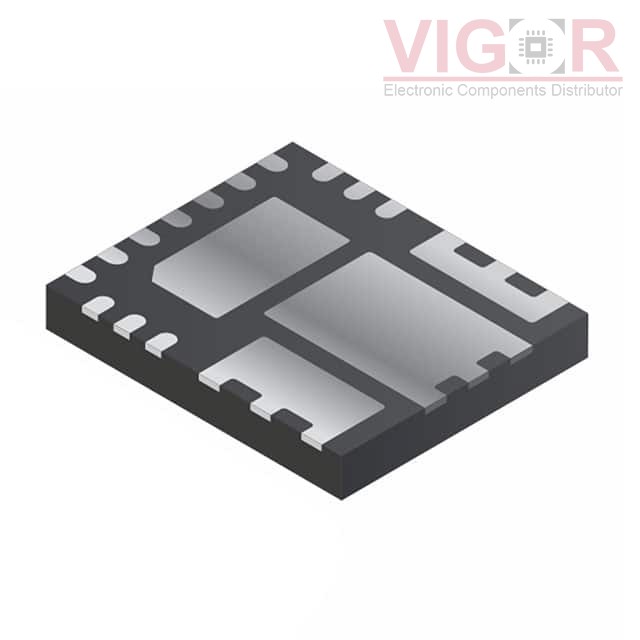

XR76121EL-F

Part No :: XR76121EL-F

Manufacturer: MaxLinear

VIGOR # :: 3891145

Description: IC REG BUCK ADJUSTABLE 20A 16QFN

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

DataSheet: XR76121EL-F PDF

Country of origin: -

Date code: -

XR76121EL-F Specifications

Type	Description
Series:	Power Blox™
Package:	Tray
Part Status:	Obsolete
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Output Type:	Adjustable
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	22V
Voltage - Output (Min/Fixed):	0.6V
Voltage - Output (Max):	22V
Current - Output:	20A
Frequency - Switching:	200kHz ~ 1MHz
Synchronous Rectifier:	Yes
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	16-PowerVQFN
Supplier Device Package:	16-QFN (5x6)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 73

Shipped from

HK warehouse

Expected Shipping Date

May 07 - May 11 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$6.3600~~	~~$6.36~~
10	~~$5.6772~~	~~$56.77~~

Current price of XR76121EL-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

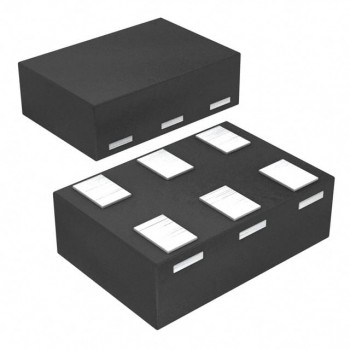

TPS622313DRYT
