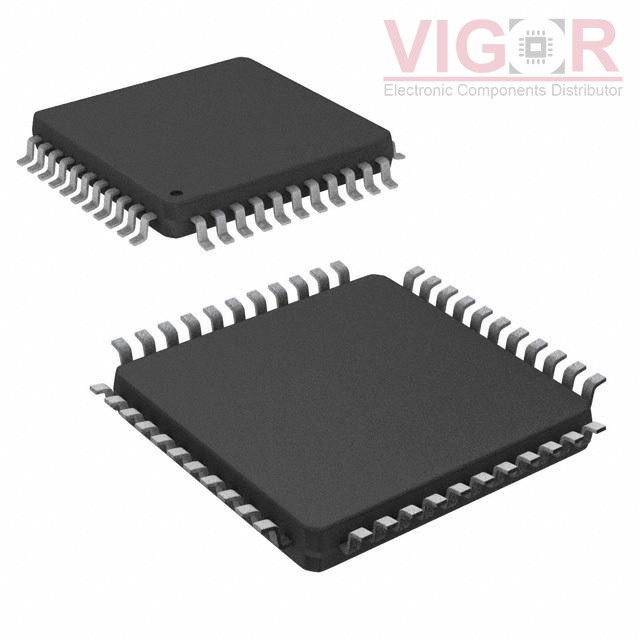

TMC236B-PA

Part No :: TMC236B-PA

Manufacturer: TRINAMIC Motion Control GmbH

VIGOR # :: 3919246

Description: IC MTR DRVR BIPOLAR 3-5.5V 44QFP

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: TMC236B-PA PDF

Country of origin: -

Date code: -

TMC236B-PA Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Motor Type - Stepper:	Bipolar
Motor Type - AC, DC:	-
Function:	Driver - Fully Integrated, Control and Power Stage
Output Configuration:	Half Bridge (4)
Interface:	SPI
Technology:	HVCMOS
Step Resolution:	1, 1/2, 1/4, 1/8, 1/16
Applications:	General Purpose
Current - Output:	1.5A
Voltage - Supply:	3V ~ 5.5V
Voltage - Load:	7V ~ 34V
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	44-LQFP
Supplier Device Package:	44-PQFP (10x10)
