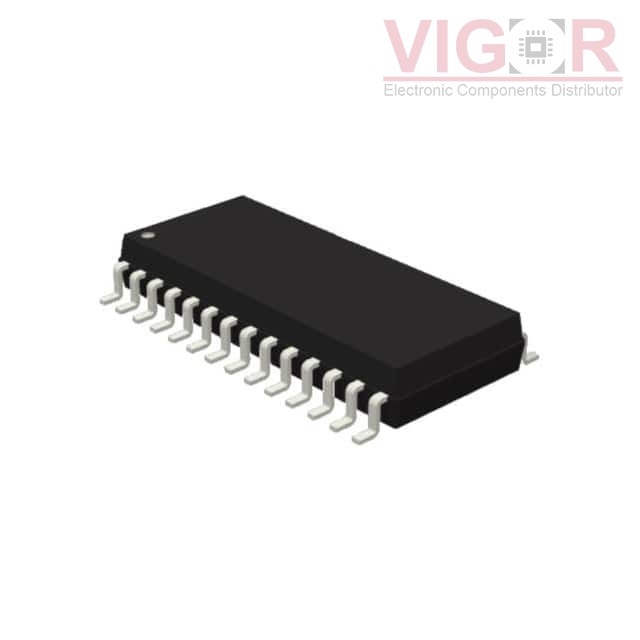

LS8293-S

Image is for reference,
please contact us to get the real picture

Part No :: LS8293-S

Manufacturer: LSI/CSI

Description: MICRO-STEPPER MOTOR CONTROLLER

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: LS8293-S PDF

Availability: 850 pieces

Unit Price: ~~$8.52000~~

Current price of LS8293-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LS8293-S Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Motor Type - Stepper:	Bipolar, Unipolar
Motor Type - AC, DC:	-
Function:	Controller - Commutation, Direction Management
Output Configuration:	Half Bridge (2)
Interface:	PWM
Technology:	Power MOSFET
Step Resolution:	1, 1/2, 1/8, 1/16, 1/32
Applications:	General Purpose
Current - Output:	-
Voltage - Supply:	4.5V ~ 5.5V
Voltage - Load:	-
Operating Temperature:	-25°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	28-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	28-SOIC
