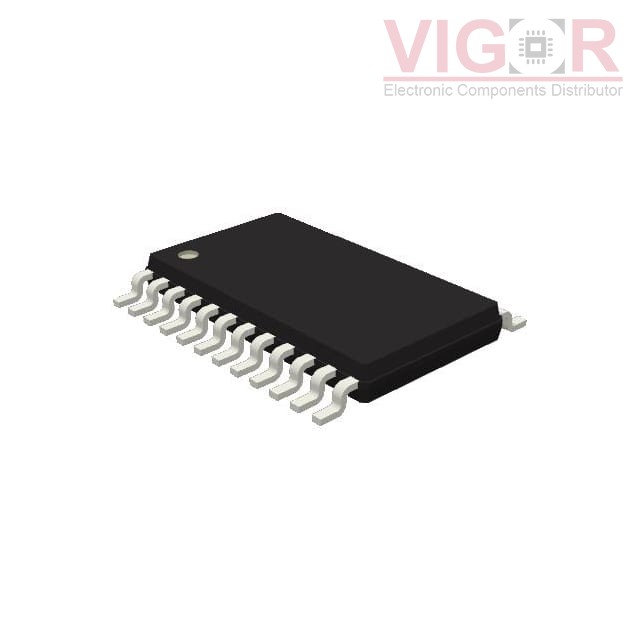

LS7290-TS

Part No :: LS7290-TS

Manufacturer: LSI/CSI

Description: STEPPER MOTOR CONTROLLER

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: LS7290-TS PDF

Availability: 850 pieces

Unit Price: ~~$3.78000~~

Current price of LS7290-TS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LS7290-TS Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Motor Type - Stepper:	Bipolar, Unipolar
Motor Type - AC, DC:	-
Function:	Controller - Commutation, Direction Management
Output Configuration:	Half Bridge (2)
Interface:	PWM
Technology:	Power MOSFET
Step Resolution:	1, 1/2
Applications:	General Purpose
Current - Output:	-
Voltage - Supply:	3V ~ 5.5V
Voltage - Load:	-
Operating Temperature:	-20°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	24-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	24-TSSOP

Please confirm the specifications of the products when ordering.
