LS8297-TS

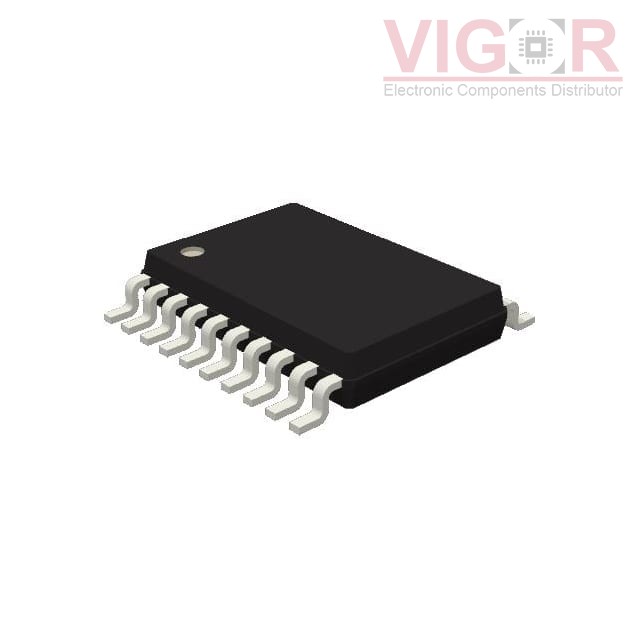

Image is for reference,
please contact us to get the real picture

Part No :: LS8297-TS

Manufacturer: LSI/CSI

Description: STEPPER MOTOR CONTROLLER

Catalog: PMIC - Motor Drivers, Controllers

DataSheet: LS8297-TS PDF

Availability: 950 pieces

Unit Price: ~~$5.01000~~

Current price of LS8297-TS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LS8297-TS Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Motor Type - Stepper:	Bipolar, Unipolar
Motor Type - AC, DC:	-
Function:	Controller - Commutation, Direction Management
Output Configuration:	Half Bridge (2)
Interface:	PWM
Technology:	Power MOSFET
Step Resolution:	1, 1/2
Applications:	General Purpose
Current - Output:	-
Voltage - Supply:	4.75V ~ 7V
Voltage - Load:	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	20-TSSOP
