SMA6864MZ-LF2451

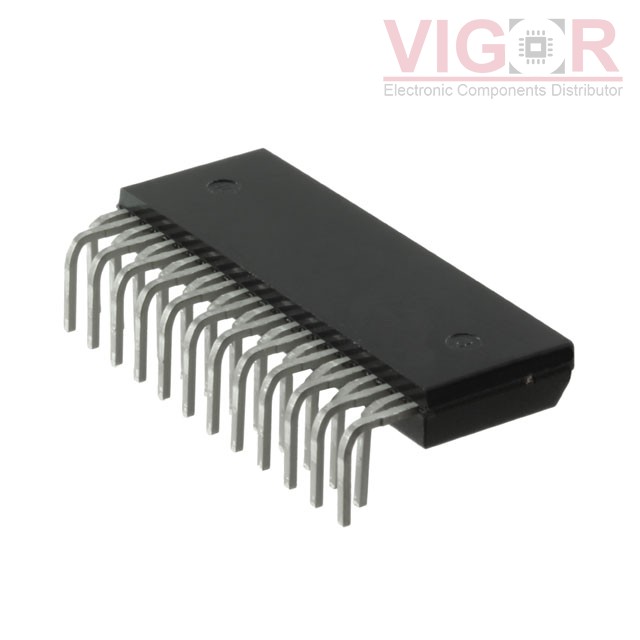

Product image
Product thumb
Part No :

SMA6864MZ-LF2451

Manufacturer
Sanken Electric Co., Ltd.
VIGOR # :

3924071

Description
IC MOTOR DRIVER PAR 24SIP
Catalog
PMIC - Full, Half-Bridge Drivers
DataSheet
SMA6864MZ-LF2451 PDF
Country of origin
-
Date code
-
ads
SMA6864MZ-LF2451 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Output Configuration:Half Bridge (3)
Applications:AC Motors
Interface:Logic
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):-
Current - Output / Channel:2.5A
Current - Peak Output:3.75A
Voltage - Supply:20V
Voltage - Load:200V (Max)
Operating Temperature:-20°C ~ 150°C (TJ)
Features:-
Fault Protection:Current Limiting, Over Temperature, UVLO
Mounting Type:Through Hole
Package / Case:24-SSIP Formed Leads
Supplier Device Package:24-ZIP (SMA-24)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1936
Shipped from
HK warehouse
Expected Shipping Date
Dec 29 - Jan 02 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $9.84 $9.84
18 $8.86 $159.41
36 $8.07 $290.48
108 $7.28 $786.41
252 $6.69 $1 686.18
504 $6.10 $3 074.80
1008 $5.31 $5 356.11

Current price of SMA6864MZ-LF2451 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
