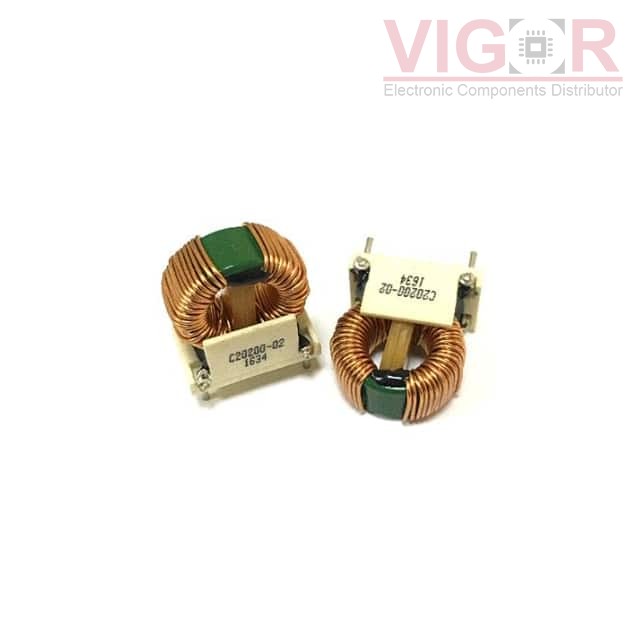

C20200-02

Image is for reference,
please contact us to get the real picture

Part No :: C20200-02

Manufacturer: ITG Electronics, Inc.

Description: CMC 2.5MH 2.4A 2LN TH

Catalog: Common Mode Chokes

DataSheet: C20200-02 PDF

Availability: 36 pieces

Unit Price: ~~$4.05500~~

Current price of C20200-02 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

C20200-02 Specifications

Type	Description
Series:	C20200
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	2.5 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2.4A
DC Resistance (DCR) (Max):	90mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.760" L x 0.492" W (19.30mm x 12.50mm)
Height (Max):	0.900" (22.86mm)
Package / Case:	Radial, Vertical - 4 Leads
