C301313A-302NHF

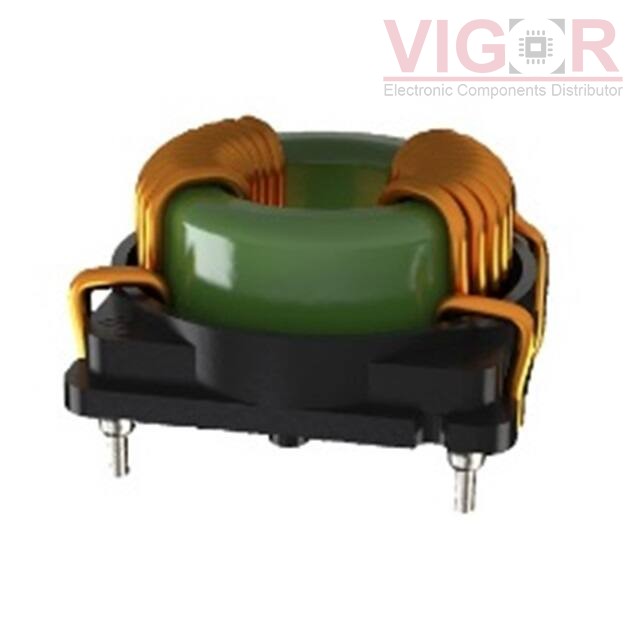

Image is for reference,
please contact us to get the real picture

Part No :: C301313A-302NHF

Manufacturer: ITG Electronics, Inc.

Description: CMC 3MH 4.5A 2LN TH

Catalog: Common Mode Chokes

DataSheet: C301313A-302NHF PDF

Availability: 24 pieces

Unit Price: ~~$7.80000~~

Current price of C301313A-302NHF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

C301313A-302NHF Specifications

Type	Description
Series:	C301313A
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	3 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	4.5A
DC Resistance (DCR) (Max):	47mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.083" L x 1.012" W (27.50mm x 25.70mm)
Height (Max):	0.728" (18.50mm)
Package / Case:	Horizontal, 4 PC Pin

Please confirm the specifications of the products when ordering.
