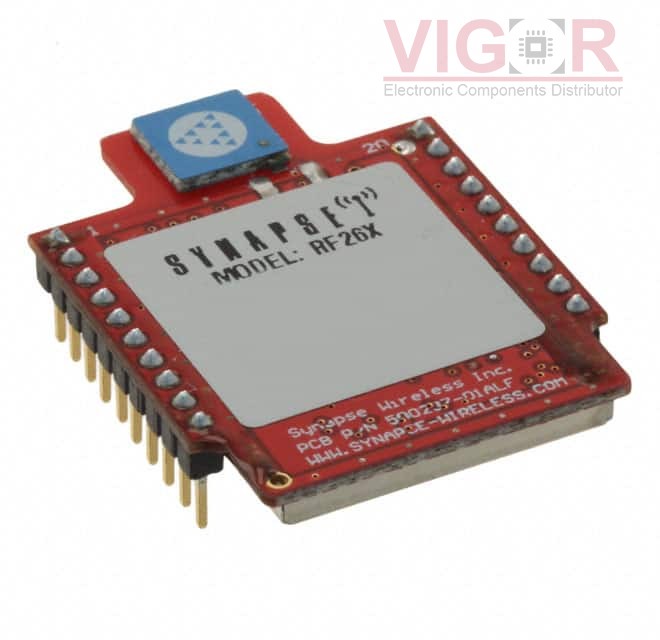

RF266PC1

Part No :: RF266PC1

Manufacturer: Synapse Wireless

VIGOR # :: 4067936

Description: RX TXRX MODULE 802.15.4 CHIP TH

Catalog: RF Transceiver Modules and Modems

DataSheet: RF266PC1 PDF

Country of origin: -

Date code: -

RF266PC1 Specifications

Type	Description
Series:	SNAP® RF Engine®
Package:	Tray
Part Status:	Obsolete
RF Family/Standard:	802.15.4
Protocol:	-
Modulation:	DSSS, O-QPSK
Frequency:	2.4GHz
Data Rate:	2Mbps
Power - Output:	20dBm
Sensitivity:	-103dBm
Serial Interfaces:	I²C, SPI
Antenna Type:	Integrated, Chip
Utilized IC / Part:	-
Memory Size:	128kB Flash, 4kB EEPROM, 58kB RAM
Voltage - Supply:	2.7V ~ 3.6V
Current - Receiving:	25mA
Current - Transmitting:	130mA
Mounting Type:	Through Hole
Operating Temperature:	-40°C ~ 85°C
Package / Case:	20-DIP Module

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

May 09 - May 13 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$46.4100~~	~~$46.41~~
100	~~$46.4100~~	~~$4 641.00~~

Current price of RF266PC1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

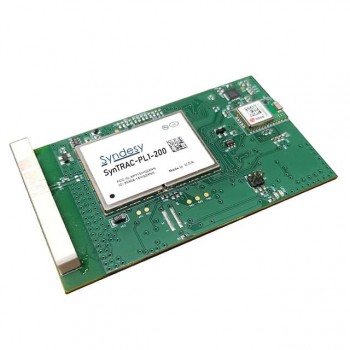

SYNTRAC-PL1-200

4G LTE US (AT&T, TMO) 2G 3G GNSS

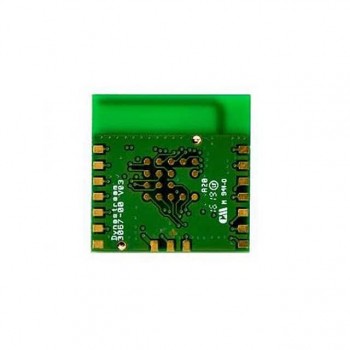

D52QD2M4IA-A-REEL

RX TXRX MODULE BT TRC ANT SMD

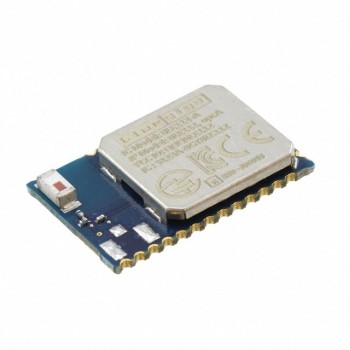

BLE112-A-V1
