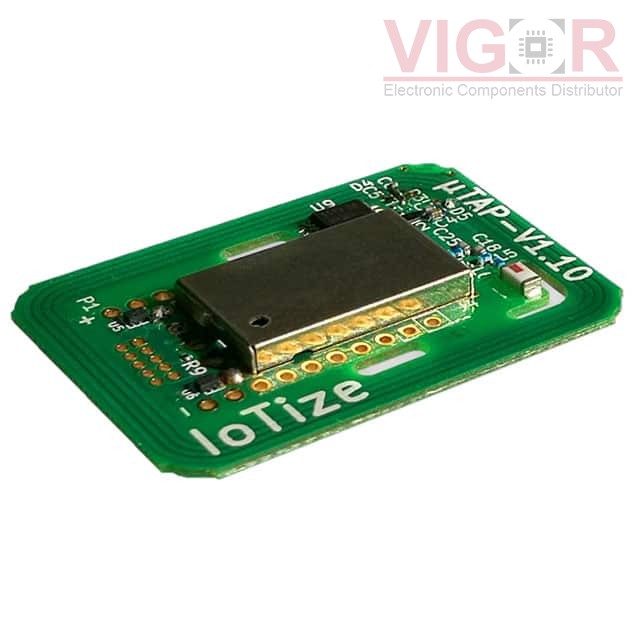

TNL-FIR103

Part No :: TNL-FIR103

Manufacturer: IoTize

Description: BLE NFC MODULE + ANT

Catalog: RF Transceiver Modules and Modems

DataSheet: TNL-FIR103 PDF

Availability: 0 pieces

Current price of TNL-FIR103 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TNL-FIR103 Specifications

Type	Description
Series:	TapNLink™
Package:	Tray
Part Status:	Active
RF Family/Standard:	Bluetooth, NFC
Protocol:	Bluetooth v4.1, NFC
Modulation:	-
Frequency:	2.402GHz ~ 2.48GHz
Data Rate:	5kbps
Power - Output:	3dB
Sensitivity:	-93dBm
Serial Interfaces:	GPIO, SWD, UART
Antenna Type:	Integrated, Chip, PCB
Utilized IC / Part:	CYW20736, ST25DV
Memory Size:	-
Voltage - Supply:	2.3V ~ 3.6V
Current - Receiving:	15mA
Current - Transmitting:	15mA
Mounting Type:	Connector Mount
Operating Temperature:	-20°C ~ 55°C
Package / Case:	Module
