ANT-DB1-RAF-SMA

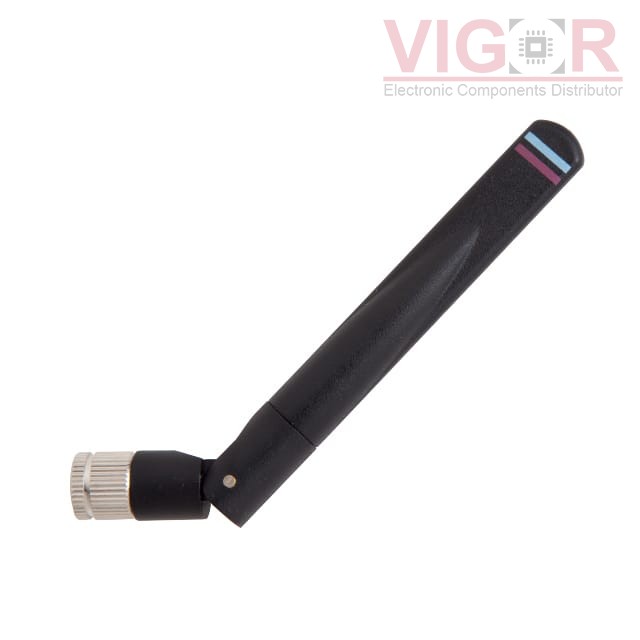

Product image
Product thumb
Part No :

ANT-DB1-RAF-SMA

Manufacturer
Linx Technologies
VIGOR # :

4070053

Description
RF ANT 2.45GHZ/5.3GHZ WHIP TILT
Catalog
RF Antennas
DataSheet
ANT-DB1-RAF-SMA PDF
Country of origin
-
Date code
-
ads
ANT-DB1-RAF-SMA Specifications
Type Description
Series:RAF
Package:Bulk
Part Status:Active
RF Family/Standard:802.15.4, Bluetooth, WiFi
Frequency Group:UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band):2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz
Frequency Range:2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.825GHz
Antenna Type:Whip, Tilt
Number of Bands:2
VSWR:1.9
Return Loss:-
Gain:2.5dBi, 4.6dBi
Power - Max:-
Features:-
Termination:SMA Male
Ingress Protection:-
Mounting Type:Connector Mount
Height (Max):4.130" (104.90mm)
Applications:Bluetooth, Thread, Wi-Fi, Zigbee™
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jan 27 - Jan 31 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $13.14 $13.14
25 $12.15 $303.87
100 $11.55 $1 154.58

Current price of ANT-DB1-RAF-SMA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
