DA14680-01F08A92

Part No :: DA14680-01F08A92

Manufacturer: Dialog Semiconductor

VIGOR # :: 4074606

Description: IC RF TXRX+MCU BLUETOOTH 60VQFN

Catalog: RF Transceiver ICs

DataSheet: DA14680-01F08A92 PDF

Country of origin: -

Date code: -

DA14680-01F08A92 Specifications

Type	Description
Series:	SmartBond™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Type:	TxRx + MCU
RF Family/Standard:	Bluetooth
Protocol:	Bluetooth v4.2
Modulation:	-
Frequency:	2.4GHz
Data Rate (Max):	-
Power - Output:	0dBm
Sensitivity:	-94dBm
Memory Size:	8Mb Flash, 64kB OTP, 128kB ROM, 144kB SRAM
Serial Interfaces:	I²C, I²S, PCM, SPI, UART, USB
GPIO:	-
Voltage - Supply:	1.7V ~ 4.5V
Current - Receiving:	-
Current - Transmitting:	-
Operating Temperature:	-
Mounting Type:	Surface Mount

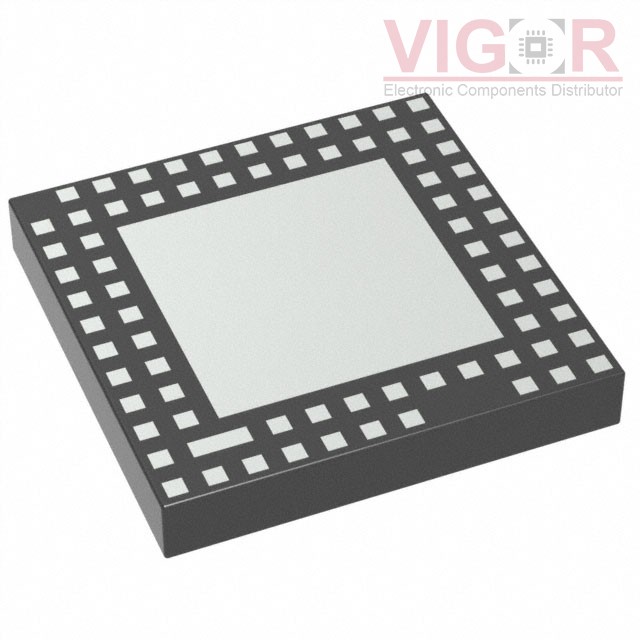

Package / Case:	60-VQFN Dual Rows, Exposed Pad
Supplier Device Package:	60-AQFN (6x6)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 04 - Jan 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.40~~	~~$5.40~~
4000	~~$3.23~~	~~$12 934.36~~

Current price of DA14680-01F08A92 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
