DA14681-01000A92

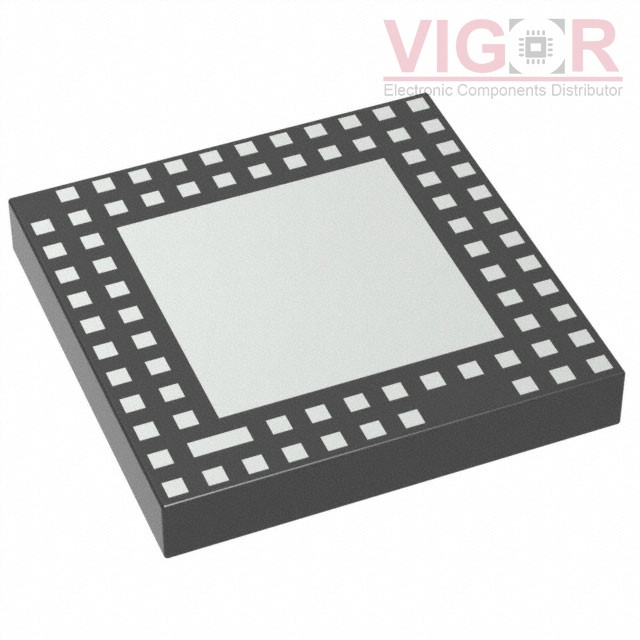

Image is for reference,
please contact us to get the real picture

Part No :: DA14681-01000A92

Manufacturer: Dialog Semiconductor

Description: IC RF TXRX+MCU BLUETOOTH 60VQFN

Catalog: RF Transceiver ICs

DataSheet: DA14681-01000A92 PDF

Availability: 744 pieces

Unit Price: ~~$4.70000~~

Current price of DA14681-01000A92 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DA14681-01000A92 Specifications

Type	Description
Series:	SmartBond™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Type:	TxRx + MCU
RF Family/Standard:	Bluetooth
Protocol:	Bluetooth v4.2
Modulation:	-
Frequency:	2.4GHz
Data Rate (Max):	-
Power - Output:	0dBm
Sensitivity:	-94dBm
Memory Size:	64kB OTP, 128kB ROM, 144kB SRAM
Serial Interfaces:	I²C, I²S, PCM, SPI, UART, USB
GPIO:	-
Voltage - Supply:	1.7V ~ 4.5V
Current - Receiving:	-
Current - Transmitting:	-
Operating Temperature:	-
Mounting Type:	Surface Mount
Package / Case:	60-VQFN Dual Rows, Exposed Pad
Supplier Device Package:	60-AQFN (6x6)

Please confirm the specifications of the products when ordering.
