IL 3685-1E

Part No :: IL 3685-1E

Manufacturer: NVE Corporation

VIGOR # :: 4080219

Description: DGT ISO 2.5KV RS422/RS485 16QSOP

Catalog: Digital Isolators

DataSheet: IL 3685-1E PDF

Country of origin: -

Date code: -

IL 3685-1E Specifications

Type	Description
Series:	IsoLoop®
Package:	Tube
Part Status:	Active
Technology:	GMR (Giant Magnetoresistive)
Type:	RS422, RS485
Isolated Power:	No
Number of Channels:	3
Inputs - Side 1/Side 2:	2/1
Channel Type:	Unidirectional
Voltage - Isolation:	2500Vrms
Common Mode Transient Immunity (Min):	30kV/µs
Data Rate:	40Mbps
Propagation Delay tpLH / tpHL (Max):	30ns, 30ns
Pulse Width Distortion (Max):	-
Rise / Fall Time (Typ):	-
Voltage - Supply:	3V ~ 5.5V, 4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	16-SSOP (0.154", 3.90mm Width)
Supplier Device Package:	16-QSOP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 97400

Shipped from

HK warehouse

Expected Shipping Date

Jan 26 - Jan 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$7.27~~	~~$7.27~~

Current price of IL 3685-1E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

LTC4310CDD-1#PBF

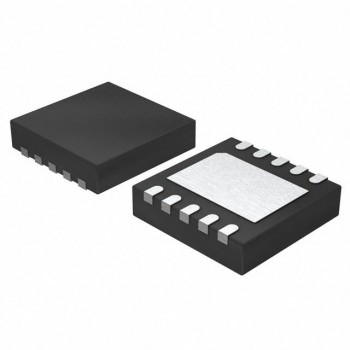

DIGITAL ISOLATOR 2CH I2C 10DFN

SI8651EB-B-IU

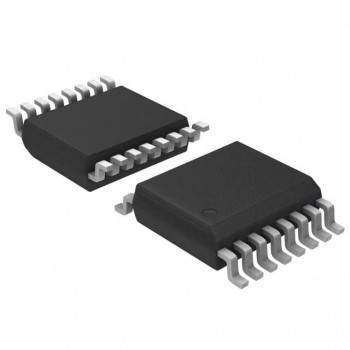

DGTL ISO 2500VRMS 5CH GP 16QSOP
