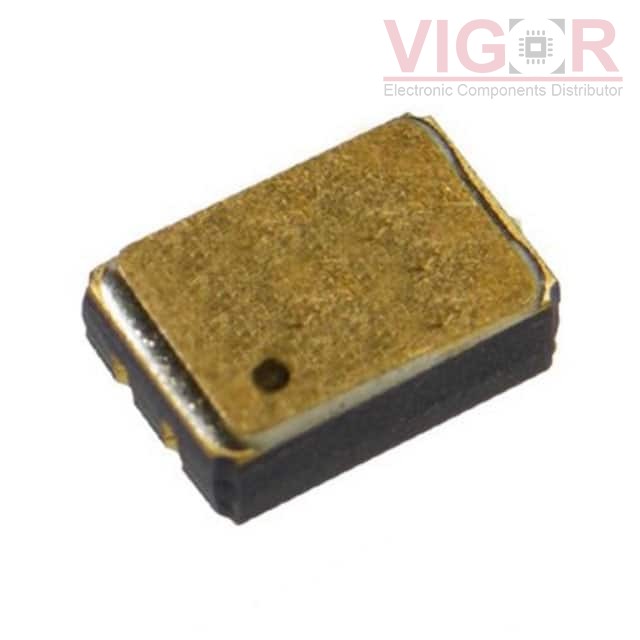

HCC1002

Part No :: HCC1002

Manufacturer: TT Electronics / Optek Technology

Description: RADIATION CAPABLE OPTOISOLATOR 4

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: HCC1002 PDF

Availability: 0 pieces

Unit Price: ~~$71.00500~~

Current price of HCC1002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HCC1002 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Number of Channels:	1
Voltage - Isolation:	1000VDC
Current Transfer Ratio (Min):	-
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	20µs, 20µs (Max)
Input Type:	DC
Output Type:	-
Voltage - Output (Max):	40V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.9V (Max)
Current - DC Forward (If) (Max):	40 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	4-CLCC
Supplier Device Package:	4-LCC (3.81x5.59)
