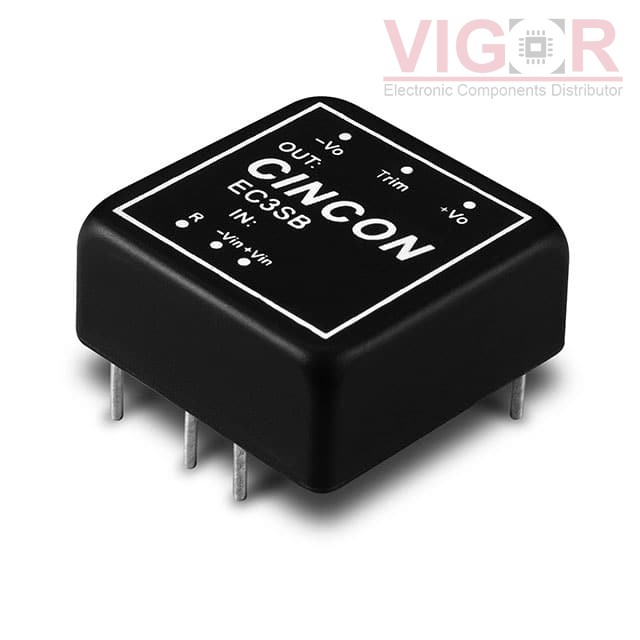

EC3SB-24S05

Part No :: EC3SB-24S05

Manufacturer: Cincon

VIGOR # :: 4116305

Description: DC DC CONVERTER 5V 15W

Catalog: DC DC Converters

DataSheet: EC3SB-24S05 PDF

Country of origin: -

Date code: -

EC3SB-24S05 Specifications

Type	Description
Series:	EC3SB (15W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3A
Power (Watts):	15 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	89%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
JCM1524S05 Match 99%	XP Power DC DC CONVERTER 5V 15W	EC3SB-24S05 vs JCM1524S05
CP15C1130036P Match 99%	Semiconductor Circuits, Inc. DC DC CONVERTER 5V 15W	EC3SB-24S05 vs CP15C1130036P
RCD15-24S05W Match 91%	P-Duke Technology, Inc. ISOLATED / 15W/ VOUT:5	EC3SB-24S05 vs RCD15-24S05W
PKE3211PI Match 100%	Flex Power Modules DC DC CONVERTER 5V 15W	EC3SB-24S05 vs PKE3211PI
PDQ15-Q48-S5-D Match 100%	CUI Inc. DC DC CONVERTER 5V 15W	EC3SB-24S05 vs PDQ15-Q48-S5-D
LCD15-48S05W Match 99%	P-Duke Technology, Inc. DC DC CONVERTER 5V 15W	EC3SB-24S05 vs LCD15-48S05W

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1410

Shipped from

HK warehouse

Expected Shipping Date

Aug 17 - Aug 21 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$29.3100~~	~~$29.31~~
5	~~$29.0169~~	~~$145.08~~
10	~~$28.7271~~	~~$287.27~~
25	~~$28.1524~~	~~$703.81~~
50	~~$27.3076~~	~~$1 365.38~~
100	~~$25.9423~~	~~$2 594.23~~
500	~~$21.4850~~	~~$10 742.52~~

Current price of EC3SB-24S05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
