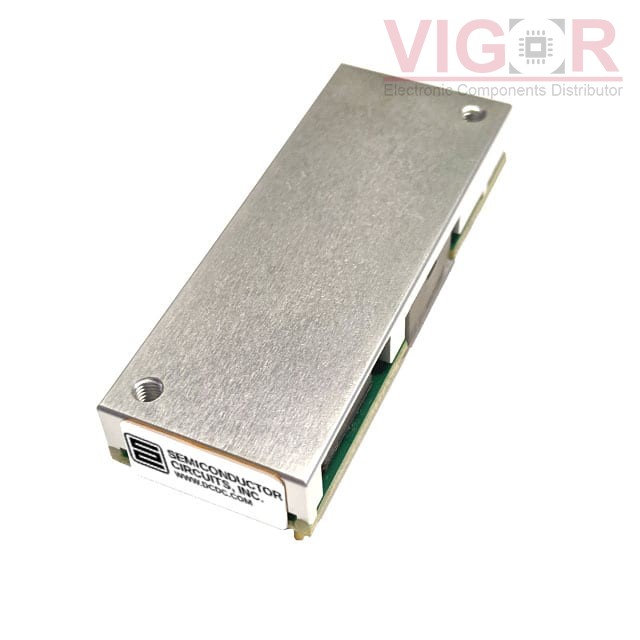

CPE5D48NB

Part No :: CPE5D48NB

Manufacturer: Semiconductor Circuits, Inc.

VIGOR # :: 4125566

Description: 24V 5A 36-75VIN 8TH NEG ENB W/BA

Catalog: DC DC Converters

DataSheet: CPE5D48NB PDF

Country of origin: -

Date code: -

CPE5D48NB Specifications

Type	Description
Series:	CPE
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	5A
Power (Watts):	120 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output, Baseplate, Remote On/Off, Remote Sense
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	93.5%
Mounting Type:	Through Hole
Package / Case:	Eighth Brick
Size / Dimension:	2.30" L x 0.90" W x 0.50" H (58.4mm x 22.9mm x 12.7mm)
Supplier Device Package:	Eighth Brick
Control Features:	Enable, Active Low
Approval Agency:	CSA, TUV, UL
Standard Number:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1472

Shipped from

HK warehouse

Expected Shipping Date

Dec 30 - Jan 03 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$36.82~~	~~$36.82~~

Current price of CPE5D48NB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
