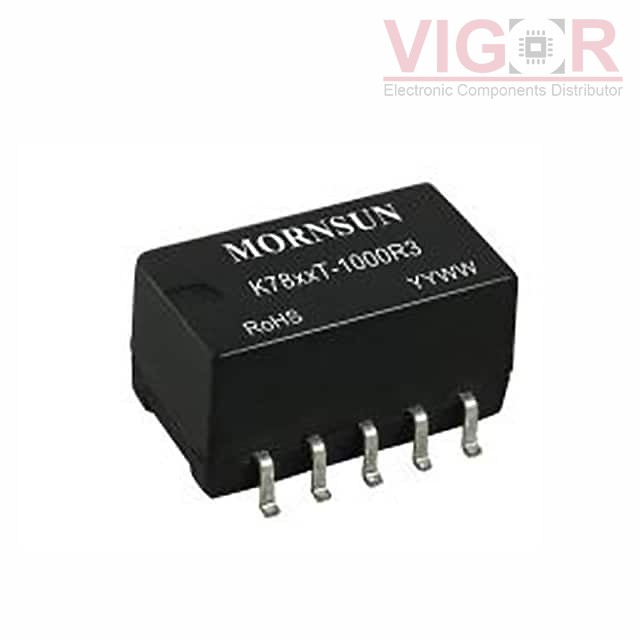

K7809T-500R3

Part No :: K7809T-500R3

Manufacturer: Mornsun

VIGOR # :: 4136204

Description: DC DC CONVERTER 9V 4.5W

Catalog: DC DC Converters

DataSheet: K7809T-500R3 PDF

Country of origin: -

Date code: -

K7809T-500R3 Specifications

Type	Description
Series:	K7809T-500R3
Package:	Tube
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	12V
Voltage - Input (Max):	36V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA
Power (Watts):	4.5 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	93%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module, 8 Leads
Size / Dimension:	0.60" L x 0.33" W x 0.32" H (15.2mm x 8.5mm x 8.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
V78E09-500-SMT-TR Match 100%	CUI Inc. DC DC CONVERTER 9V 4.5W	K7809T-500R3 vs V78E09-500-SMT-TR
LMT78_09-0.5R Match 100%	TE Connectivity AMP Connectors DC-DC POL	K7809T-500R3 vs LMT78_09-0.5R
K7809T-500R3-TR Match 100%	Mornsun DC DC CONVERTER 9V 4.5W	K7809T-500R3 vs K7809T-500R3-TR
SVR05S09-TR Match 100%	XP Power DC DC CONVERTER 9V	K7809T-500R3 vs SVR05S09-TR
SVR05S6V5-TR Match 55%	XP Power DC DC CONVERTER 6.5V	K7809T-500R3 vs SVR05S6V5-TR
SVR05S09 Match 100%	XP Power DC DC CONVERTER 9V	K7809T-500R3 vs SVR05S09
