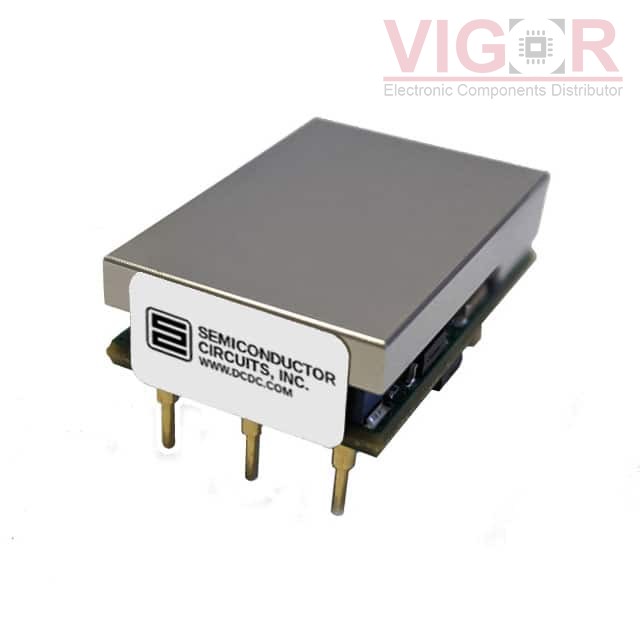

CPT20A48NB

Part No :: CPT20A48NB

Manufacturer: Semiconductor Circuits, Inc.

VIGOR # :: 4168139

Description: 5V 20A 36-75VIN 16TH NEG ENB W/B

Catalog: DC DC Converters

DataSheet: CPT20A48NB PDF

Country of origin: -

Date code: -

CPT20A48NB Specifications

Type	Description
Series:	CPT
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	100 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output, Baseplate, Remote On/Off, Remote Sense
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	93%
Mounting Type:	Through Hole
Package / Case:	Sixteenth Brick
Size / Dimension:	1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm)
Supplier Device Package:	Sixteenth Brick
Control Features:	Enable, Active Low
Approval Agency:	CSA, TUV, UL
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
CPT20A48N Match 100%	Semiconductor Circuits, Inc. DC DC CONVERTER 5V 100W	CPT20A48NB vs CPT20A48N
CPT20A48P Match 100%	Semiconductor Circuits, Inc. DC DC CONVERTER 5V 100W	CPT20A48NB vs CPT20A48P
AVD85-48S05TL Match 83%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 5V 85W	CPT20A48NB vs AVD85-48S05TL
CPT20A48PB Match 100%	Semiconductor Circuits, Inc. 5V 20A 36-75VIN 16TH POS ENB W/B	CPT20A48NB vs CPT20A48PB
AVD85-48S05B-6L Match 83%	Emerson Embedded Power (Artesyn Embedded Technologies) DC DC CONVERTER 5V 85W	CPT20A48NB vs AVD85-48S05B-6L
PKU4105CPI Match 95%	Flex Power Modules DC DC CONVERTER 5V 100W	CPT20A48NB vs PKU4105CPI

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1036

Shipped from

HK warehouse

Expected Shipping Date

Oct 11 - Oct 15 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$36.8200~~	~~$36.82~~

Current price of CPT20A48NB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
