TX16/9.1/4.7-3C94

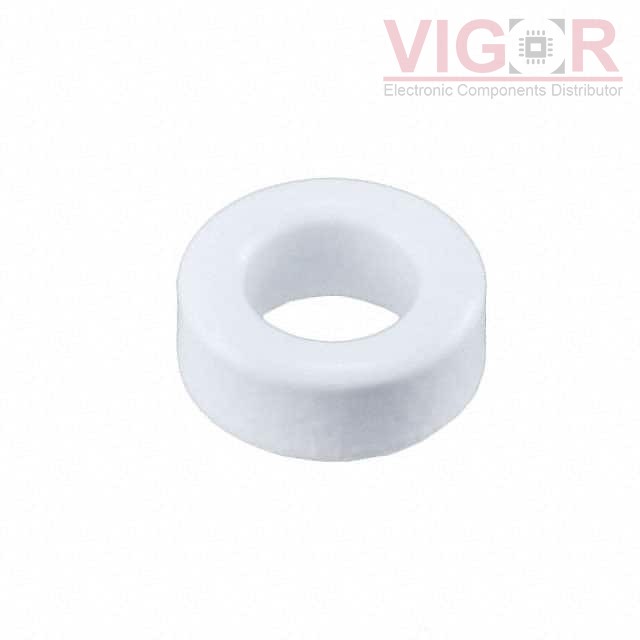

Product image
Product thumb
Part No :

TX16/9.1/4.7-3C94

Manufacturer
FERROXCUBE
VIGOR # :

4178249

Description
FERRITE CORES ROUND
Catalog
Ferrite Cores
DataSheet
TX16/9.1/4.7-3C94 PDF
Country of origin
-
Date code
-
ads
TX16/9.1/4.7-3C94 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Core Type:Toroid
Supplier Device Package:TX 16 x 9.1 x 4.7
Material:3C94
Diameter:16.13mm
Inductance Factor (Al):-
Tolerance:±20%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):2300
Core Factor (ΣI/A) mm-1:2.53
Effective Length (le) mm:37.2
Effective Area (Ae) mm²:14.7
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:548
Finish:Epoxy
Height:4.95mm
Length:-
Width:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 982
Shipped from
HK warehouse
Expected Shipping Date
Jan 15 - Jan 19 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.73 $0.73
10 $0.62 $6.20
25 $0.53 $13.29
50 $0.48 $23.80
100 $0.42 $42.06
250 $0.38 $94.07
500 $0.35 $177.09
1000 $0.30 $298.83
5000 $0.28 $1 383.50

Current price of TX16/9.1/4.7-3C94 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

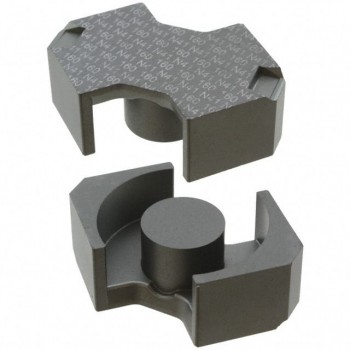

B65815E0160A041
