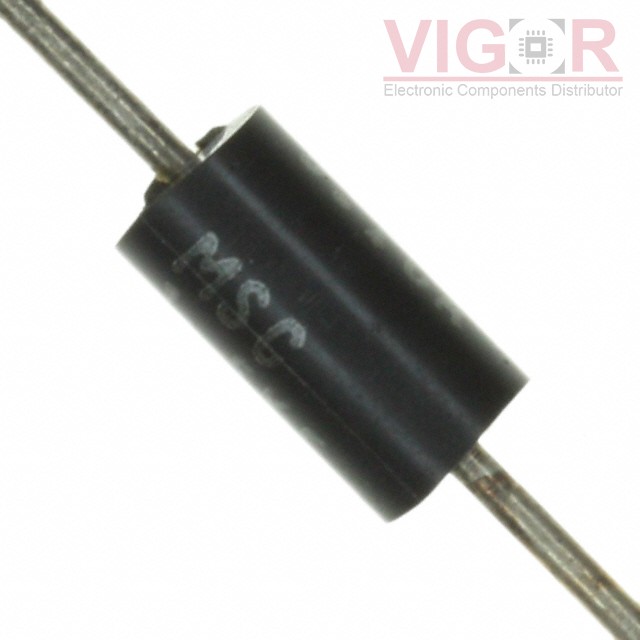

1.5KE9.1AE3/TR13

Part No :: 1.5KE9.1AE3/TR13

Manufacturer: Microsemi

VIGOR # :: 4493052

Description: TVS DIODE 7.78V 13.4V CASE-1

Catalog: TVS - Diodes

DataSheet: 1.5KE9.1AE3/TR13 PDF

Country of origin: -

Date code: -

1.5KE9.1AE3/TR13 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	7.78V
Voltage - Breakdown (Min):	8.65V
Voltage - Clamping (Max) @ Ipp:	13.4V
Current - Peak Pulse (10/1000µs):	112A
Power - Peak Pulse:	1500W (1.5kW)
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	DO-201AA, DO-27, Axial
Supplier Device Package:	CASE-1
