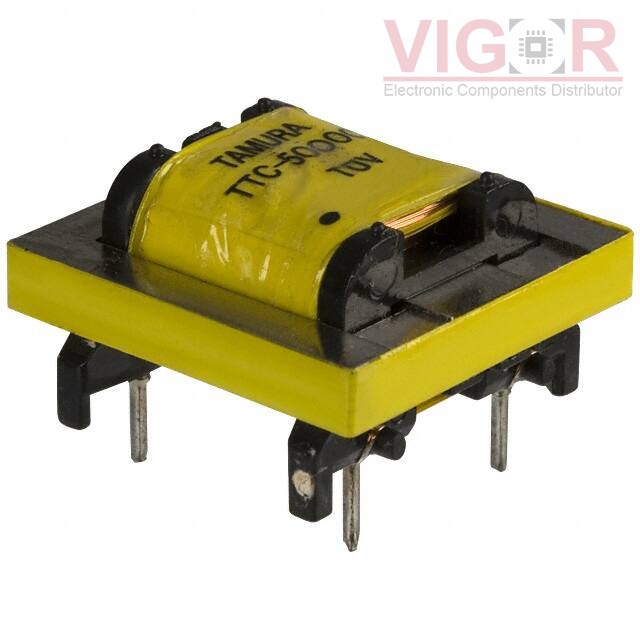

TTC-5000

Part No :: TTC-5000

Manufacturer: Tamura

VIGOR # :: 4507331

Description: TRANSFORM MODEM COUP 600:301 OHM

Catalog: Audio Transformers

DataSheet: TTC-5000 PDF

Country of origin: -

Date code: -

TTC-5000 Specifications

Type	Description
Series:	TTC
Package:	Bulk
Part Status:	Obsolete
Turns Ratio - Primary:Secondary:	1:1
Impedance - Primary (Ohms):	600
Impedance - Secondary (Ohms):	301
DC Resistance (DCR) - Primary:	150Ohm
DC Resistance (DCR) - Secondary:	150Ohm
Transformer Type:	Data/Voice Coupling
Frequency Range:	200Hz ~ 4kHz
Frequency Response:	±0.25dB
Voltage - Isolation:	1875VRMS @ 1 Second
Insertion Loss:	3.25dB Max @ 1kHz
Return Loss:	20dB Min @ 1kHz
Power Level:	-
Operating Temperature:	-
Approval Agency:	UL1950, UL60950, EN60950
Mounting Type:	Through Hole
Size / Dimension:	0.886" L x 0.909" W (22.50mm x 23.10mm)
Height - Seated (Max):	0.543" (13.80mm)
Termination Style:	PC Pin

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Feb 08 - Feb 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of TTC-5000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
