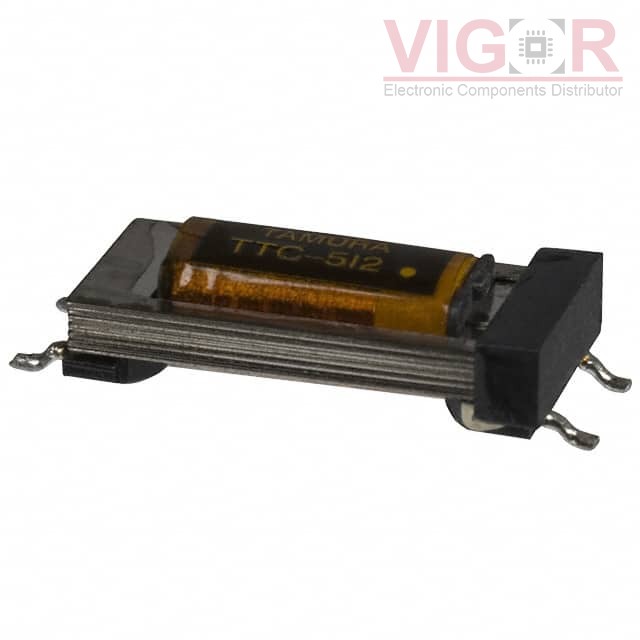

TTC-512

Part No :: TTC-512

Manufacturer: Tamura

VIGOR # :: 4507351

Description: TRANSF TELE COUP 600:510 OHM SMD

Catalog: Audio Transformers

DataSheet: TTC-512 PDF

Country of origin: -

Date code: -

TTC-512 Specifications

Type	Description
Series:	TTC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Turns Ratio - Primary:Secondary:	1:1
Impedance - Primary (Ohms):	600
Impedance - Secondary (Ohms):	510
DC Resistance (DCR) - Primary:	58Ohm
DC Resistance (DCR) - Secondary:	70Ohm
Transformer Type:	-
Frequency Range:	300Hz ~ 3.5kHz
Frequency Response:	±0.3dB ~ ±0.5dB
Voltage - Isolation:	1875VRMS @ 1 Second
Insertion Loss:	1.25dB @ 1kHz
Return Loss:	16dB Min @ 300Hz ~ 3.5kHz
Power Level:	3.5dB
Operating Temperature:	-10°C ~ 60°C
Approval Agency:	UL1950, UL60950, EN60950
Mounting Type:	Surface Mount
Size / Dimension:	0.390" L x 0.665" W (9.90mm x 17.80mm)
Height - Seated (Max):	0.181" (4.60mm)
Termination Style:	Gull Wing

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Feb 02 - Feb 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of TTC-512 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

1620A

AUDIOPHILE TUBE OUTPUT TRANSFRMR

140B

TRANSFORMER AUDIO 30/60K IMPED

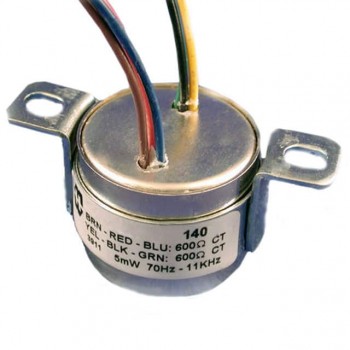

140C
