17H118D10B

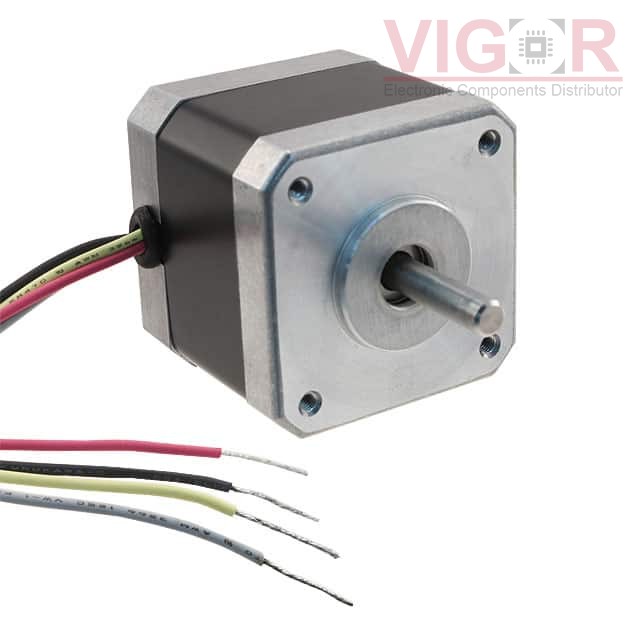

Image is for reference,
please contact us to get the real picture

Part No :: 17H118D10B

Manufacturer: Portescap

Description: STEP MOTOR HYBRID BIPOLAR 4.1V

Catalog: Stepper Motors

DataSheet: 17H118D10B PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of 17H118D10B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

17H118D10B Specifications

Type	Description
Series:	H3
Package:	Bulk
Part Status:	Obsolete
Type:	Hybrid
Coil Type:	Bipolar
Voltage - Rated:	4.1VDC
Current Rating (Amps):	1 A
Steps per Revolution:	200
Step Angle:	1.8°
Accuracy:	±5%
Torque - Holding (oz-in / mNm):	51 / 360
Size / Dimension:	Square - 1.680" x 1.680" (42.67mm x 42.67mm)
NEMA Frame Size:	17
Diameter - Shaft:	0.197" (5.00mm)
Length - Shaft and Bearing:	0.790" (20.07mm)
Mounting Hole Spacing:	1.220" (30.99mm)
Termination Style:	Wire Leads
Operating Temperature:	-20°C ~ 40°C
Coil Resistance:	4.12 Ohms
Features:	Round Shaft
