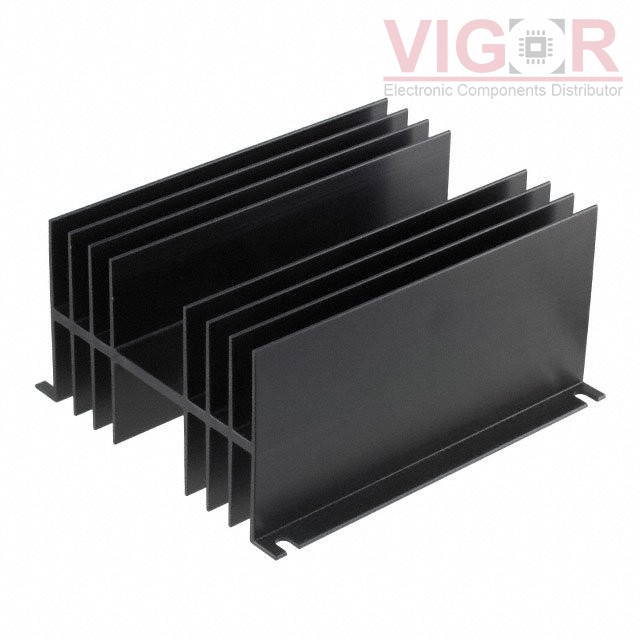

HS05

Image is for reference,
please contact us to get the real picture

Part No :: HS05

Manufacturer: Apex Microtechnology

Description: HEATSINK 8P TO-3 15W

Catalog: Thermal - Heat Sinks

DataSheet: HS05 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of HS05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HS05 Specifications

Type	Description
Series:	Apex Precision Power®
Package:	Bulk
Part Status:	Discontinued at Digi-Key
Type:	Board Level
Package Cooled:	TO-3
Attachment Method:	Bolt On
Shape:	Rectangular, Fins
Length:	4.750" (120.65mm)
Width:	5.500" (139.70mm)
Diameter:	-
Fin Height:	2.630" (66.80mm)
Power Dissipation @ Temperature Rise:	20.0W @ 20°C
Thermal Resistance @ Forced Air Flow:	0.30°C/W @ 500 LFM
Thermal Resistance @ Natural:	0.85°C/W
Material:	Aluminum
Material Finish:	Black Anodized

Please confirm the specifications of the products when ordering.
