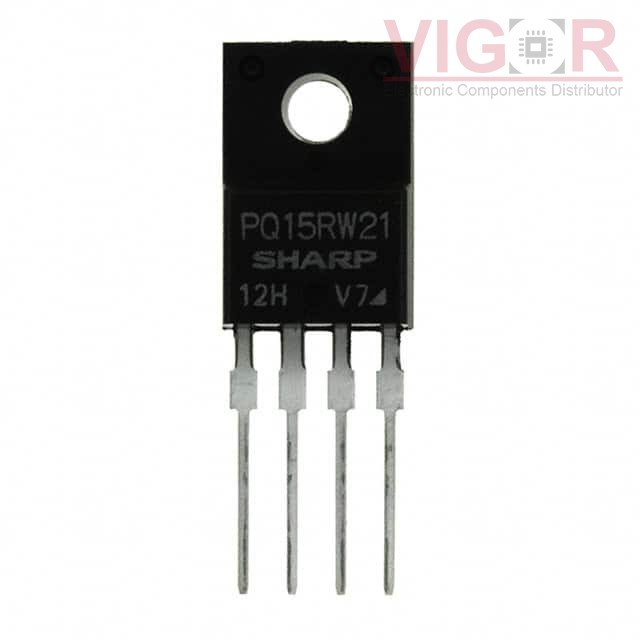

PQ15RW21J00H

Part No :: PQ15RW21J00H

Manufacturer: Sharp Microelectronics

VIGOR # :: 4866863

Description: IC REG LINEAR POS ADJ 2A TO220-4

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: PQ15RW21J00H PDF

Country of origin: -

Date code: -

PQ15RW21J00H Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Adjustable
Number of Regulators:	1
Voltage - Input (Max):	20V
Voltage - Output (Min/Fixed):	3V
Voltage - Output (Max):	15V
Voltage Dropout (Max):	0.5V @ 2A
Current - Output:	2A
Current - Quiescent (Iq):	8 mA
Current - Supply (Max):	-
PSRR:	55dB (120Hz)
Control Features:	-
Protection Features:	Over Current, Over Temperature
Operating Temperature:	-20°C ~ 80°C
Mounting Type:	Through Hole
Package / Case:	TO-220-4
Supplier Device Package:	TO-220-4

Alternative Products

Part Number	Manufacturer & Description	Compare
PQ3RD23J000H Match 100%	Sharp Microelectronics IC REG LINEAR 3.3V 2A TO220-4	PQ15RW21J00H vs PQ3RD23J000H
PQ05RD21J00H Match 100%	Sharp Microelectronics IC REG LINEAR 5V 2A TO220-4	PQ15RW21J00H vs PQ05RD21J00H
PQ3RD23 Match 100%	Sharp Microelectronics IC REG LINEAR 3.3V 2A TO220-4	PQ15RW21J00H vs PQ3RD23
PQ15RW21 Match 100%	Sharp Microelectronics IC REG LINEAR POS ADJ 2A TO220-4	PQ15RW21J00H vs PQ15RW21
PQ033EF02SZH Match 100%	Sharp Microelectronics IC REG LINEAR 3.3V 2A TO220-4	PQ15RW21J00H vs PQ033EF02SZH
PQ070XF02SZH Match 100%	Sharp Microelectronics IC REG LINEAR POS ADJ 2A TO220-4	PQ15RW21J00H vs PQ070XF02SZH
