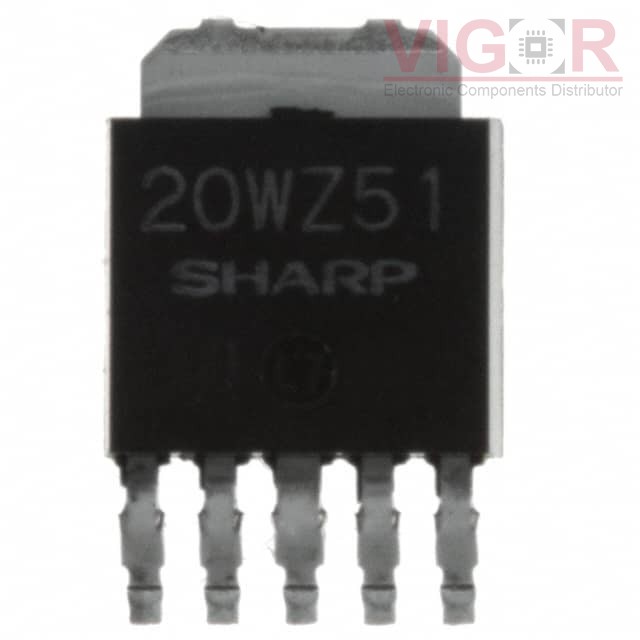

PQ20WZ51J00H

Part No :: PQ20WZ51J00H

Manufacturer: Sharp Microelectronics

VIGOR # :: 4868385

Description: IC REG LINEAR POS ADJ 500MA SC63

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: PQ20WZ51J00H PDF

Country of origin: -

Date code: -

PQ20WZ51J00H Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Adjustable
Number of Regulators:	1
Voltage - Input (Max):	24V
Voltage - Output (Min/Fixed):	3V
Voltage - Output (Max):	20V
Voltage Dropout (Max):	0.5V @ 300mA
Current - Output:	500mA
Current - Quiescent (Iq):	8 mA
Current - Supply (Max):	-
PSRR:	60dB (120Hz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature
Operating Temperature:	-20°C ~ 80°C
Mounting Type:	Surface Mount
Package / Case:	TO-252-6, DPak (5 Leads + Tab)
Supplier Device Package:	SC-63

Alternative Products

Part Number	Manufacturer & Description	Compare
PQ05DZ51J00H Match 100%	Sharp Microelectronics IC REG LINEAR 5V 500MA SC63	PQ20WZ51J00H vs PQ05DZ51J00H
PQ20WZ5U Match 100%	Sharp Microelectronics IC REG LINEAR POS ADJ 500MA SC63	PQ20WZ51J00H vs PQ20WZ5U
PQ3DZ53UJ00H Match 100%	Sharp Microelectronics IC REG LINEAR 3.3V 500MA SC63	PQ20WZ51J00H vs PQ3DZ53UJ00H
PQ12DZ5UJ00H Match 100%	Sharp Microelectronics IC REG LINEAR 12V 500MA SC63	PQ20WZ51J00H vs PQ12DZ5UJ00H
PQ12DZ51J00H Match 100%	Sharp Microelectronics IC REG LINEAR 12V 500MA SC63	PQ20WZ51J00H vs PQ12DZ51J00H
PQ20WZ5UJ00H Match 100%	Sharp Microelectronics IC REG LINEAR POS ADJ 500MA SC63	PQ20WZ51J00H vs PQ20WZ5UJ00H
