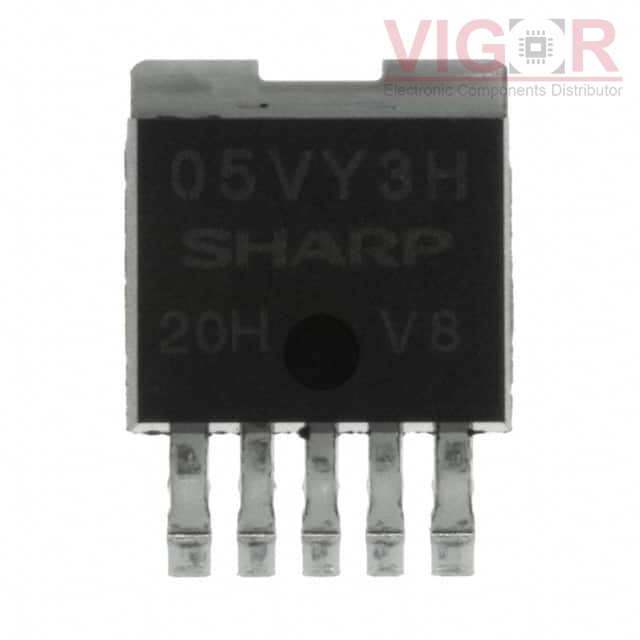

PQ05VY3H3ZPH

Part No :: PQ05VY3H3ZPH

Manufacturer: Sharp Microelectronics

VIGOR # :: 4870086

Description: IC REG LINEAR POS ADJ 3.5A TO263

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: PQ05VY3H3ZPH PDF

Country of origin: -

Date code: -

PQ05VY3H3ZPH Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Adjustable
Number of Regulators:	1
Voltage - Input (Max):	7V
Voltage - Output (Min/Fixed):	1.5V
Voltage - Output (Max):	5V
Voltage Dropout (Max):	0.5V @ 3.5A
Current - Output:	3.5A
Current - Quiescent (Iq):	10 mA
Current - Supply (Max):	-
PSRR:	70dB (120Hz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature
Operating Temperature:	-20°C ~ 80°C
Mounting Type:	Surface Mount
Package / Case:	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package:	TO-263

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 4006

Shipped from

HK warehouse

Expected Shipping Date

Jan 01 - Jan 05 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of PQ05VY3H3ZPH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
