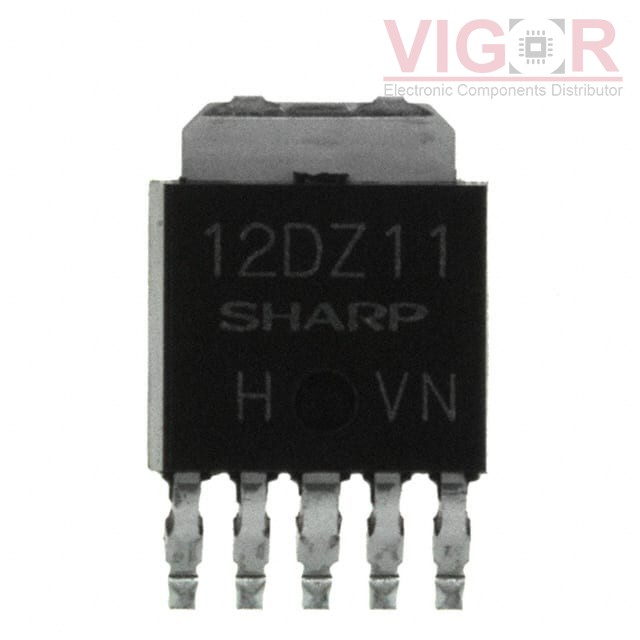

PQ12DZ11J00H

Part No :: PQ12DZ11J00H

Manufacturer: Sharp Microelectronics

VIGOR # :: 4874708

Description: IC REG LINEAR 12V 1A SC63

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: PQ12DZ11J00H PDF

Country of origin: -

Date code: -

PQ12DZ11J00H Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	24V
Voltage - Output (Min/Fixed):	12V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.5V @ 500mA
Current - Output:	1A
Current - Quiescent (Iq):	10 mA
Current - Supply (Max):	-
PSRR:	60dB (120Hz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature
Operating Temperature:	-20°C ~ 80°C
Mounting Type:	Surface Mount
Package / Case:	TO-252-6, DPak (5 Leads + Tab)
Supplier Device Package:	SC-63

Alternative Products

Part Number	Manufacturer & Description	Compare
PQ05DZ11J00H Match 100%	Sharp Microelectronics IC REG LINEAR 5V 1A SC63	PQ12DZ11J00H vs PQ05DZ11J00H
PQ12DZ1UJ00H Match 100%	Sharp Microelectronics IC REG LINEAR 12V 1A SC63	PQ12DZ11J00H vs PQ12DZ1UJ00H
PQ09DZ1UJ00H Match 100%	Sharp Microelectronics IC REG LINEAR 9V 1A SC63	PQ12DZ11J00H vs PQ09DZ1UJ00H
PQ20WZ1U Match 100%	Sharp Microelectronics IC REG LINEAR POS ADJ 1A SC63	PQ12DZ11J00H vs PQ20WZ1U
PQ070XZ01ZZ Match 100%	Sharp Microelectronics IC REG LINEAR POS ADJ 1A SC63	PQ12DZ11J00H vs PQ070XZ01ZZ
PQ080DNA1ZZH Match 100%	Sharp Microelectronics IC REG LINEAR 8V 1A SC63	PQ12DZ11J00H vs PQ080DNA1ZZH
