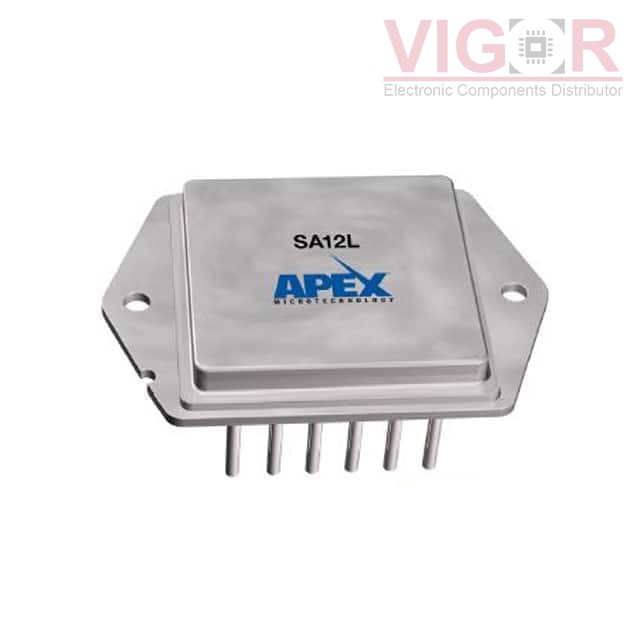

SA12L

Image is for reference,
please contact us to get the real picture

Part No :: SA12L

Manufacturer: Apex Microtechnology

Description: SWITCH AMP 200V 15A FULL BRIDGE

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: SA12L PDF

Availability: 1672 pieces

Unit Price: ~~$0.00000~~

Current price of SA12L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SA12L Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Discontinued at Digi-Key
Output Configuration:	Half Bridge (2)
Applications:	AC Motors, Piezo Devices
Interface:	PWM
Load Type:	Inductive, Capacitive
Technology:	Power MOSFET
Rds On (Typ):	400mOhm (Max)
Current - Output / Channel:	15A
Current - Peak Output:	20A
Voltage - Supply:	14V ~ 16V
Voltage - Load:	16V ~ 200V
Operating Temperature:	-55°C ~ 150°C (TJ)
Features:	-
Fault Protection:	Current Limiting, Over Temperature
Mounting Type:	Through Hole
Package / Case:	12-PowerDIP, Module
Supplier Device Package:	12-PowerDip
