SA160DPA

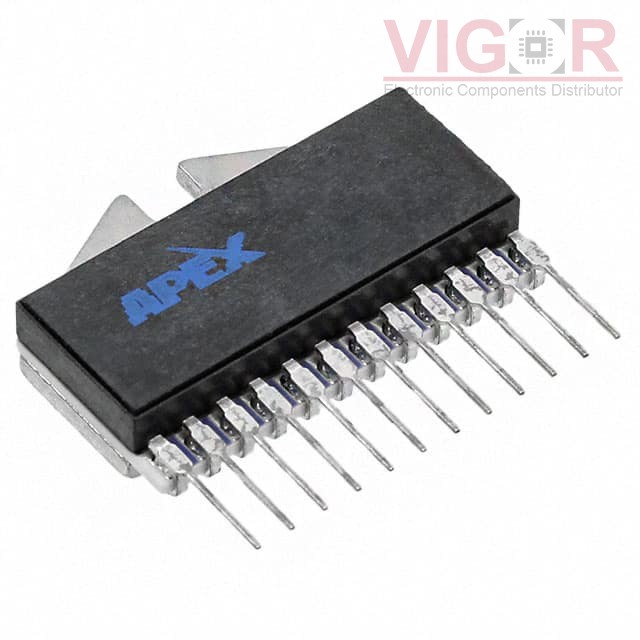

Image is for reference,
please contact us to get the real picture

Part No :: SA160DPA

Manufacturer: Apex Microtechnology

Description: IC BRIDGE DRVR ANLG/PWM 12SIP DP

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: SA160DPA PDF

Availability: 2329 pieces

Unit Price: ~~$0.00000~~

Current price of SA160DPA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SA160DPA Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Discontinued at Digi-Key
Output Configuration:	Half Bridge (2)
Applications:	DC Motors, General Purpose
Interface:	Analog, PWM
Load Type:	Inductive
Technology:	Power MOSFET
Rds On (Typ):	140mOhm LS + HS
Current - Output / Channel:	14A
Current - Peak Output:	20A
Voltage - Supply:	9.5V ~ 15V
Voltage - Load:	80V (Max)
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Internal Oscillators
Fault Protection:	-
Mounting Type:	Through Hole
Package / Case:	12-PowerSIP
Supplier Device Package:	12-POWER SIP

Please confirm the specifications of the products when ordering.
