SA57AHU

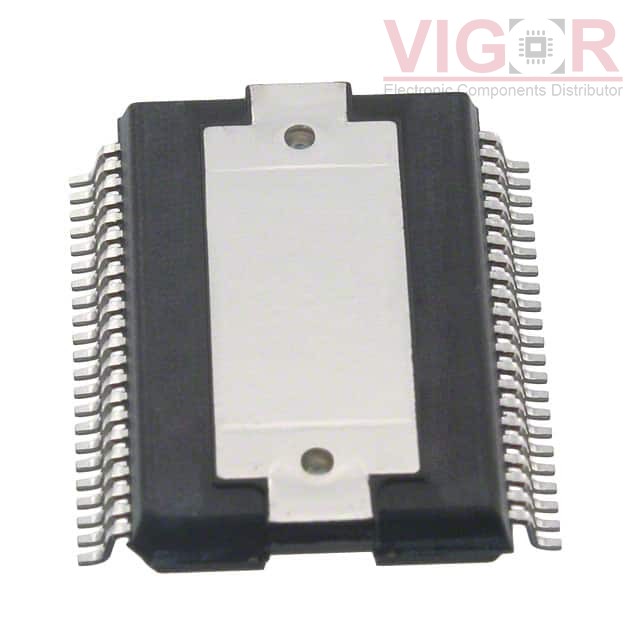

Image is for reference,
please contact us to get the real picture

Part No :: SA57AHU

Manufacturer: Apex Microtechnology

Description: IC MOTOR DRIVER PAR 44HSOP

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: SA57AHU PDF

Availability: 1386 pieces

Unit Price: ~~$0.00000~~

Current price of SA57AHU is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SA57AHU Specifications

Type	Description
Series:	Apex Precision Power®
Package:	Bulk
Part Status:	Discontinued at Digi-Key
Output Configuration:	Half Bridge (2)
Applications:	DC Motors, General Purpose, Solenoids, Stepper Motors
Interface:	PWM
Load Type:	Inductive
Technology:	DMOS
Rds On (Typ):	300mOhm
Current - Output / Channel:	8A
Current - Peak Output:	17A
Voltage - Supply:	4.5V ~ 5.5V
Voltage - Load:	9V ~ 60V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	-
Fault Protection:	Current Limiting, Over Temperature, Shoot-Through, UVLO
Mounting Type:	Surface Mount
Package / Case:	44-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package:	44-HSOP

Please confirm the specifications of the products when ordering.
