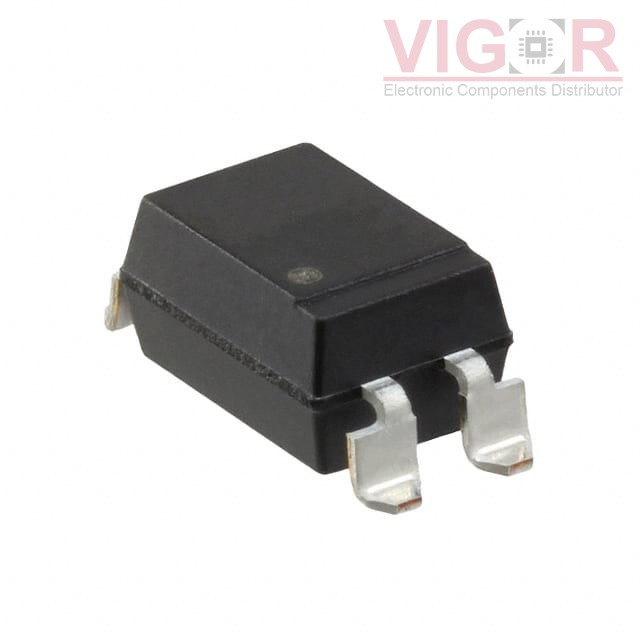

PS2505L-1-A

Part No :: PS2505L-1-A

Manufacturer: CEL (California Eastern Laboratories)

VIGOR # :: 4979748

Description: OPTOISOLATOR 5KV TRANS 4SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: PS2505L-1-A PDF

Country of origin: -

Date code: -

PS2505L-1-A Specifications

Type	Description
Series:	NEPOC
Package:	Tube
Part Status:	Discontinued at Digi-Key
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	80% @ 5mA
Current Transfer Ratio (Max):	600% @ 5mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	3µs, 5µs
Input Type:	AC, DC
Output Type:	Transistor
Voltage - Output (Max):	80V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.17V
Current - DC Forward (If) (Max):	80 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SMD
