PC815I

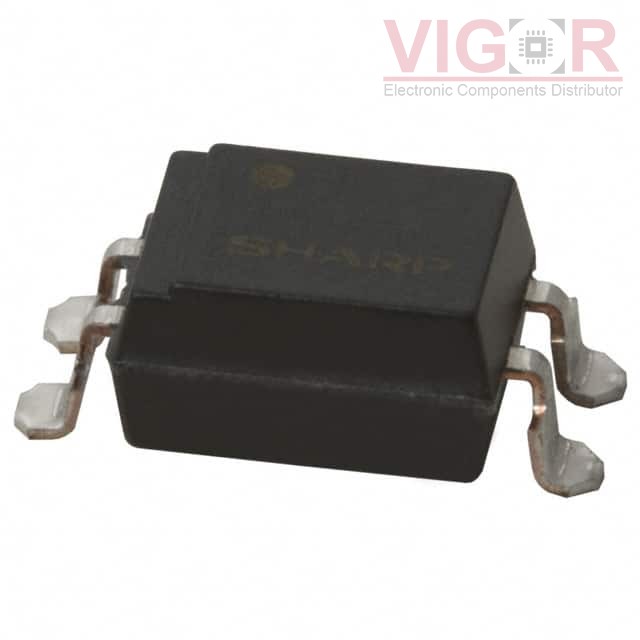

Image is for reference,
please contact us to get the real picture

Part No :: PC815I

Manufacturer: Sharp Microelectronics

Description: OPTOISOLATOR 5KV DARL 4SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

DataSheet: PC815I PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PC815I is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PC815I Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	600% @ 1mA
Current Transfer Ratio (Max):	7500% @ 1mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	60µs, 53µs
Input Type:	DC
Output Type:	Darlington
Voltage - Output (Max):	35V
Current - Output / Channel:	80mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	1V
Operating Temperature:	-30°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SMD
