15DAWE_2412S1.5 vs EC5BW-24S12

This detailed comparison of 15DAWE_2412S1.5 and EC5BW-24S12 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

15DAWE_2412S1.5

TE Connectivity AMP Connectors

Request For Quote

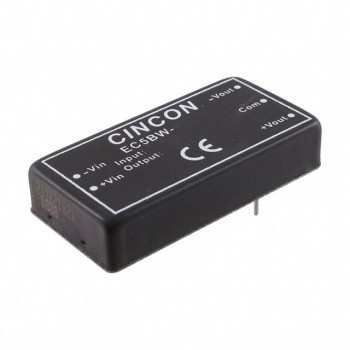

EC5BW-24S12

Cincon

Request For Quote

Specifications Hide identical items

Manufacturer	TE Connectivity AMP Connectors	Cincon
Package / Case	6-DIP Module	6-DIP Module
Description	DC-DC	DC DC CONVERTER 12V 15W
In Stock	919	853
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	15DAWE_1.5 (15W)	EC5BW (15W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	9V
Voltage - Input (Max)	36V	36V
Voltage - Output 1	12V	12V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1.25A	1.25A
Power (Watts)	15 W	15 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Adjustable Output, Remote On/Off	OCP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C (With Derating)
Efficiency	89%	87%
Size / Dimension	2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm)	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	CE, cURus	-
Standard Number	60950-1	-
