15DPW_1203S1.6 vs JCG1512S3V3

This detailed comparison of 15DPW_1203S1.6 and JCG1512S3V3 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

15DPW_1203S1.6

TE Connectivity AMP Connectors

Request For Quote

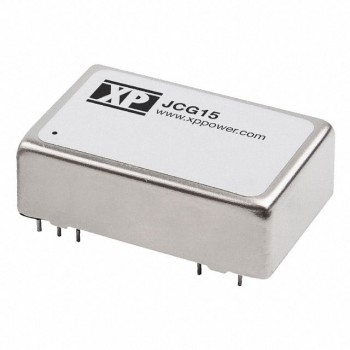

JCG1512S3V3

XP Power

Request For Quote

Specifications Hide identical items

Manufacturer	TE Connectivity AMP Connectors	XP Power
Package / Case	24-DIP Module, 8 Leads	24-DIP Module, 8 Leads
Description	DC-DC	DC DC CONVERTER 3.3V 15W
In Stock	1 047	1 933
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	15DPW (15W)	JCG (15W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	9V	9V
Voltage - Input (Max)	18V	18V
Voltage - Output 1	3.3V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	4A	4A
Power (Watts)	13 W	15 W
Voltage - Isolation	1.6 kV	1.6 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 85°C (With Derating)	-40°C ~ 100°C
Efficiency	86%	86%
Size / Dimension	1.25" L x 0.80" W x 0.42" H (31.8mm x 20.3mm x 10.7mm)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package	-	-
Control Features	-	Enable, Active High
Approval Agency	-	-
Standard Number	60950-1	62368-1
