60DAW_4812S1.6 vs JTL6048S12

This detailed comparison of 60DAW_4812S1.6 and JTL6048S12 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

60DAW_4812S1.6

TE Connectivity AMP Connectors

Request For Quote

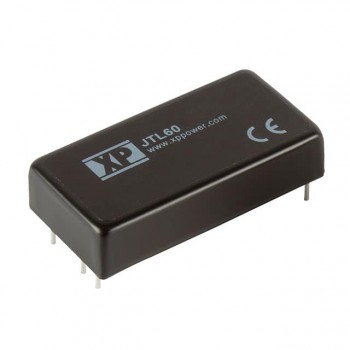

JTL6048S12

XP Power

Request For Quote

Specifications Hide identical items

Manufacturer	TE Connectivity AMP Connectors	XP Power
Package / Case	6-DIP Module	6-DIP Module
Description	DC-DC	DC DC CONVERTER 12V 60W
In Stock	474	866
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	60DAW_1.6 (60W)	JTL60 (60W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	36V	18V
Voltage - Input (Max)	72V	75V
Voltage - Output 1	12V	12V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	5A	5A
Power (Watts)	60 W	60 W
Voltage - Isolation	1.6 kV	1.6 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off	Remote On/Off, OVP, SCP
Operating Temperature	-40°C ~ 85°C (With Derating)	-40°C ~ 85°C
Efficiency	90%	92%
Size / Dimension	2.00" L x 1.00" W x 0.52" H (50.8mm x 25.4mm x 13.1mm)	2.00" L x 1.00" W x 0.45" H (50.8mm x 25.4mm x 11.4mm)
Supplier Device Package	-	-
Control Features	-	Enable, Active High
Approval Agency	CE	-
Standard Number	-	62368-1
