AEH08U48N-6L vs CBS3504848

This detailed comparison of AEH08U48N-6L and CBS3504848 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

AEH08U48N-6L

Emerson Embedded Power (Artesyn Embedded Technologies)

Request For Quote

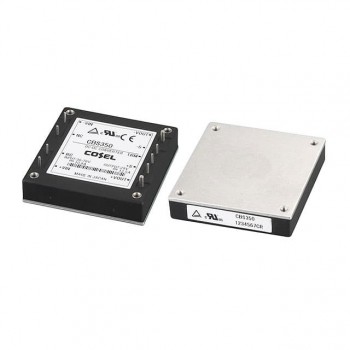

CBS3504848

Cosel

Request For Quote

Specifications Hide identical items

Manufacturer	Emerson Embedded Power (Artesyn Embedded Technologies)	Cosel
Package / Case	Half Brick	Half Brick
Description	DC DC CONVERTER 53V 400W	DC DC CONVERTER 48V 350W
In Stock	132	89
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	AEH08 (400W)	CBS (350W)
Package	Tray	Box
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	38V	36V
Voltage - Input (Max)	60V	60V
Voltage - Output 1	53V	48V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	7.55A	7.3A
Power (Watts)	400 W	350 W
Voltage - Isolation	2.25 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Adjustable Output, Remote On/Off, Remote Sense	Remote On/Off, OCP, OVP
Operating Temperature	-5°C ~ 55°C	-40°C ~ 100°C (With Derating)
Efficiency	94%	91%
Size / Dimension	2.40" L x 2.30" W x 0.50" H (61.0mm x 58.4mm x 12.7mm)	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package	Half Brick	Half Brick
Control Features	Enable, Active Low	-
Approval Agency	cUL, TUV, UL	-
Standard Number	-	-
