AM1LS-2405SH30-NZTR vs PES1-S24-S5-M-TR

This detailed comparison of AM1LS-2405SH30-NZTR and PES1-S24-S5-M-TR in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

AM1LS-2405SH30-NZTR

DComponents

Request For Quote

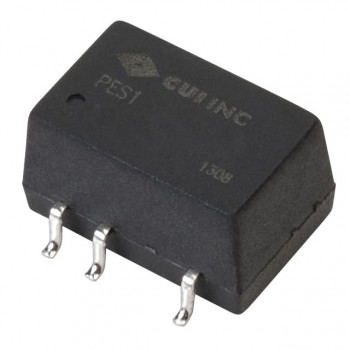

PES1-S24-S5-M-TR

CUI Inc.

Request For Quote

Specifications Hide identical items

Manufacturer	DComponents	CUI Inc.
Package / Case	8-SMD Module, 5 Leads	8-SMD Module, 5 Leads
Description	DC DC CONVERTER 5V 1W	DC DC CONVERTER 5V 1W
In Stock	463	904
Mounting Type	Surface Mount	Surface Mount
Part Status	Active	Active
Series	AM1LS-NZ (1W)	PES1-M (1W)
Package	Tape & Reel (TR)	Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	21.6V	21.6V
Voltage - Input (Max)	26.4V	26.4V
Voltage - Output 1	5V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	200mA	200mA
Power (Watts)	1 W	1 W
Voltage - Isolation	3 kV	3 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	-	SCP
Operating Temperature	-40°C ~ 105°C (With Derating)	-40°C ~ 105°C (With Derating)
Efficiency	80%	80%
Size / Dimension	0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm)	0.50" L x 0.32" W x 0.29" H (12.8mm x 8.2mm x 7.3mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	cULus, cURus	EN, UL
Standard Number	-	55024; 55032 Class A; 60950-1
