AM6CW-4805S-NZ vs SKMW06G-05

This detailed comparison of AM6CW-4805S-NZ and SKMW06G-05 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

AM6CW-4805S-NZ

DComponents

Request For Quote

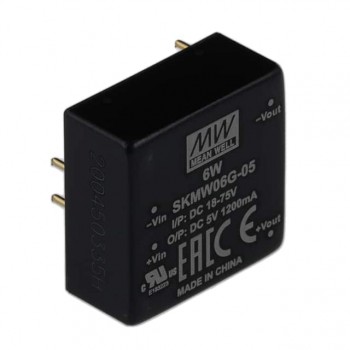

SKMW06G-05

MEAN WELL

Request For Quote

Specifications Hide identical items

Manufacturer	DComponents	MEAN WELL
Package / Case	5-DIP Module, 4 Leads	5-DIP Module, 4 Leads
Description	DC DC CONVERTER 5V 6W	DC DC CONVERTER 5V 6W
In Stock	657	429
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	AM6CW-NZ (6W)	SKMW06 (6W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	75V	75V
Voltage - Output 1	5V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1.2A	1.2A
Power (Watts)	6 W	6 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	-	-
Operating Temperature	-40°C ~ 71°C (With Derating)	-40°C ~ 85°C (With Derating)
Efficiency	83%	81%
Size / Dimension	1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)	1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	CE, cURus, UL	CE, cURus, EAC
Standard Number	-	-
