BP5277-13 vs VR05S12

This detailed comparison of BP5277-13 and VR05S12 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

BP5277-13

ROHM Semiconductor

Request For Quote

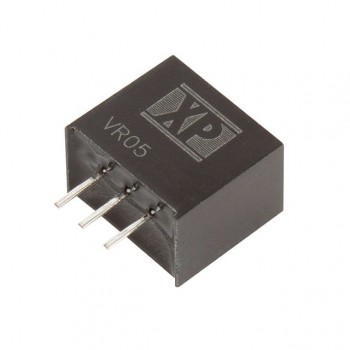

VR05S12

XP Power

Request For Quote

Specifications Hide identical items

Manufacturer	ROHM Semiconductor	XP Power
Package / Case	3-SIP Module	3-SIP Module
Description	DC DC CONVERTER 13V 6.5W	DC DC CONVERTER 12V
In Stock	824	573
Mounting Type	Through Hole	Through Hole
Part Status	Obsolete	Active
Series	BP5277	VR05
Package	Tray	Tube
Type	Linear Regulator Replacement	Linear Regulator Replacement
Number of Outputs	1	1
Voltage - Input (Min)	16.5V	15V
Voltage - Input (Max)	32V	36V
Voltage - Output 1	13V	12V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	500mA	500mA
Power (Watts)	6.5 W	-
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	-	Adjustable Output, Remote On/Off
Operating Temperature	-30°C ~ 85°C	-40°C ~ 85°C (With Derating)
Efficiency	91%	94%
Size / Dimension	1.04" L x 0.64" W x 0.24" H (26.4mm x 16.3mm x 6.2mm)	0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
