BP5293-12 vs P78E12-1000

This detailed comparison of BP5293-12 and P78E12-1000 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

BP5293-12

ROHM Semiconductor

Request For Quote

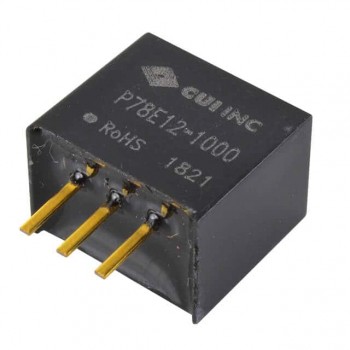

P78E12-1000

CUI Inc.

Request For Quote

Specifications Hide identical items

Manufacturer	ROHM Semiconductor	CUI Inc.
Package / Case	3-SIP Module	3-SIP Module
Description	DC DC CONVERTER 12V	DC DC CONVERTER 12V 12W
In Stock	1 836	1 539
Mounting Type	Through Hole	Through Hole
Part Status	Obsolete	Active
Series	BP5293	P78E-1000
Package	Tray	Tube
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	17V	16V
Voltage - Input (Max)	26V	36V
Voltage - Output 1	12V	12V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1A	1A
Power (Watts)	-	12 W
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	OCP, OVP, UVLO	SCP
Operating Temperature	-25°C ~ 85°C	-40°C ~ 85°C (With Derating)
Efficiency	90%	95%
Size / Dimension	0.67" L x 0.22" W x 0.70" H (17.0mm x 5.7mm x 17.8mm)	0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
